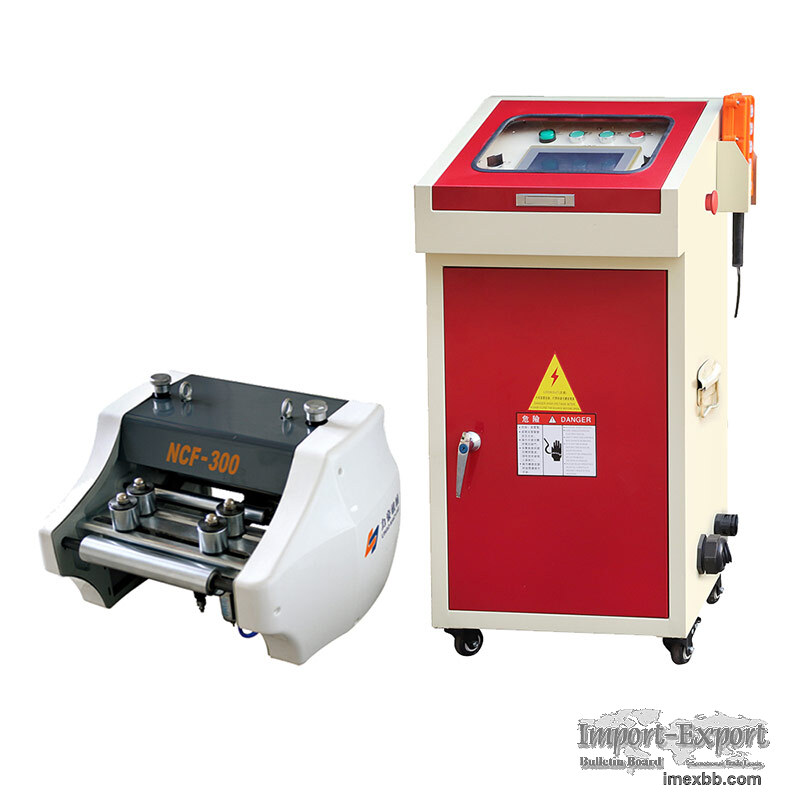

NCF Type NC Servo Roll Feeder

Feature:
1. NCF roller feeder is suitable for material feeding with different thickness
and length.
2. NCF roller feeder is suitable for high speed and long size feeding to
improve productivity and feeding accuracy.
3. NCF roller feeder simple operation panel, with feeding length and feeding
speed of the key number code, the operator can be arbitrary Settings, rapid and
accurate, feeding length from 0.1mm - 9999.99mm.
4. NCF roller feeder adopts air pressure type relaxation (accurate relaxation
point), which can be used for a long time with zero fault.
5. NCF roller feeder can be reformed into mechanical relaxation mode according
to customer requirements NC.
6. NCF roller feeder with the best general performance of a model, free in the
cylinder press and spring press replacement.

Structure:
1. NCF roller feeder USES high quality, brushless servo motor drive,
effectively shorten the feeding distance adjustment and testing time.
2. NCF roller feeder USES high sensitivity decoder, precise insemination and
higher feeding accuracy.
3. NCF roller feeder with timing belt transmission, can eliminate gear gap,
wear, no noise, no lubrication, safety and environmental protection.
4. Motor internal device can avoid damage during handling and loading and
unloading.
5. NCF roller feeder 600 times under the best cost-effective feeder.

·Control panel
1. HMI adopts Taiwan screen pass 7-inch hd screen, with uniform color and The
human-machine interface adopts Taiwan screen pass 7-inch hd screen, with
uniform color and exquisite picture quality. It is applied in most industrial
environments with high reliability, and supports serial port and network
communication synchronously
2. The switch adopts sliding contact, has self-cleaning function, normally open
and normally closed contact adopts separate bonding structure, can work with
different poles, equipped with anti-rotation positioning and stop loose
mounting gasket
3. It adopts self-compound flat button button, which is light and light in
strength and moderate in key range. The contact of the modular structure is
made of ketone compound point, which has strong conductivity and large carrying
current, and has a life span of 1 million times.

• Operating handle
1. The electric control box is equipped with an operation box, which is
convenient for personnel transposition operation, time-saving, waterproof and
dustproof, high material strength, good electrical conductivity and long
service life.
2. The electric control box is separately set with emergency stop button, which
is safe and reliable, and can effectively reduce the opening and closing of the
electric control box, and effectively protect the operation panel.

· Feed roller, block wheel
1. The feeding roller adopts the galvanizing roller without power, which is
formed in one, and the surface is scratch-resistant and wear-resisting
mechanical bearing, which is flexible in rotation and durable
2. Hard chrome plating on feeding wheel, hard chrome hardening HRC60, strong
locking force on locking handle, convenient locking, smooth rolling of roller

·Feed cylinder
Using genuine yade polite cylinder, alloy cylinder body, hard oxidation,
riveting no leakage, solid aluminum CNC precision machining, inner wall
grinding smooth, non-clamping, high efficiency, high strength operation,
durable, suitable for all kinds of working conditions.

·Servo Motor
Brands use yaskawa servo motor and drive (optional), improve equipment
performance significantly, the maximum play to the device performance, problem
solving, yaskawa motor original "no adjustment function" further deepen,
without tedious tuning work, stable movement, can be used in harsh environment
and energy saving, conform to safety standards, time limit for visualization.

·Transmission gear
Gear processing process includes the following processes: gear hair cultivation
processing - tooth surface processing - heat treatment - tooth surface fine
grinding. Maopei parts are mainly forgings. Through normalizing treatment, the
machining type of maopei parts is improved to facilitate cutting .According to
the gear design drawings, rough machining, and then semi-finishing, turning,
rolling, gear shaping, so that the basic gear shape; After the heat treatment
to improve the mechanical properties. According to the design requirements of
the drawings, the final finishing, finishing the benchmark, finishing the tooth
profile. After the above treatment, our gear grade can reach grade 6, high
wear resistance, high strength, long service life.
