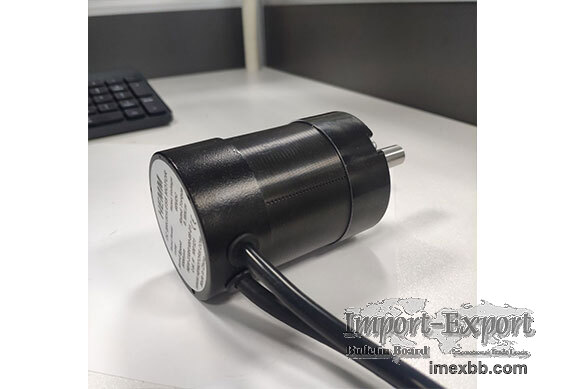

NEMA 23 BRUSHLESS DC MOTOR (ROUND)

NEMA 23 BRUSHLESS DC MOTOR (ROUND)
nema 23 bldc (round) is the most popular size, as it reaches a better balance
between size, power, and cost. We provide a good bldc motor price and please
don't hesitate to contact us！

NEMA 23 Brushless Dc Motor (Round) Characteristic Parameter
Rated voltage (VDC) 24
Rated power (W) 135
Body length (mm) 95
Pole pairs 2
Rated torque (Nm) 0.45
Rated current (A) 8
Rated speed (RPM) 3000
No load speed (RPM) 4300
Mass (kg) 0.55
Sensor Hall
Working ambient (℃) -20°~ +80°
Storage ambient (℃) +5 ~ +35
Working humidity (RH) 15%-90%

If you want to know more types of stepper motor, please visit our website.
