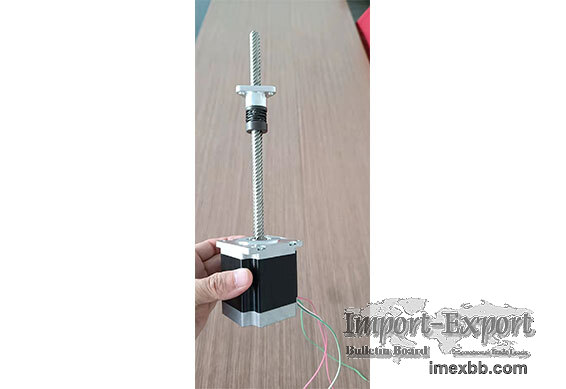

NEMA 23 LEAD SCREW MOTOR

NEMA 23 Linear Actuator
ACME lead screw with high precision, and the lead screw resolution is
±0.017mm.

High-density plastic nuts and their life can be over 2 million times.

Support to integrated with RS232/RS485, CAN communication protocol.

NEMA 23 LEAD SCREW MOTOR CHARACTERISTIC PARAMETER
LC23D-75A20
BODY LENGTH 42.3mm
RATED VOLTAGE (Vm) DC 2.6
AMPS/PHASE 2
RESISTANCE/PHASE Rm (OHMS) 1.3
INDUCTANCE/PHASE (MH @ 1000Hz) 3.2
HOLDING TORQUE (N-cm) MIN 75
STEP ANGLE (DEGREES) 1.8
STEP ACCURACY (NON-ACCUM)% ±5
LC23D-105A30
BODY LENGTH 53.3mm
RATED VOLTAGE (Vm) DC 2.25
AMPS/PHASE 3
RESISTANCE/PHASE Rm (OHMS) 0.75
INDUCTANCE/PHASE (MH @ 1000Hz) 2.5
HOLDING TORQUE (N-cm) MIN 105
STEP ANGLE (DEGREES) 1.8
STEP ACCURACY (NON-ACCUM)% ±5
NEMA 23 LEAD SCREW MOTOR TORQUE CURVE
