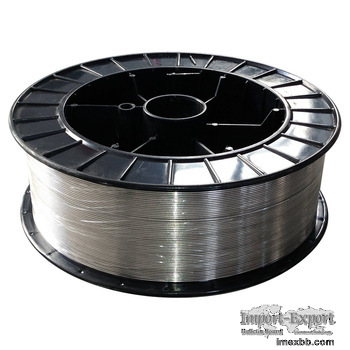

Ni95al5 Thermal Spray Wire Nickel Alloy Bright Wire

Thermal spray wire

Thermal Spray Wire is widely used in arc and flange flame spray systems, highly
anti-corroision and anti-high temperature, coatings to resist heat and prevent
scaling of conventional low alloy steels, bond coats for improving the adhesion of
top coatings, coatings on moulds in the glass industry.

Thermal spray wire series: Inconel 625, 45CT, Ni95Al5, Monel 400, Monel K500,
Hastelloy C276, Cr20Ni80, pure zinc wire

Application or Properties: Spray wire with excellent bonding strength. Sprayed
layers of this material are-resistant to variation in high temperatures and are
used as a buffer layer for all other spraying alloys. Hardness, coating macro:
approximately HRc 22. Maximum working temperature: approximately 800°C. Layer
thickness: approximately 0.1-0.15 mm.
Item Inconel 625 Ni95Al5 45CT Monel 400 Monel K500 HC-276
Cr20Ni80
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.25 ≤0.02 ≤0.08
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.5 ≤1.0 ≤0.06
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.5 ≤0.08 0.75-1.6
Cr 21.5-23 ≤0.2 42-46 -- -- 14.5-16 20-23
Ni rest rest rest 65-67 rest rest rest
Cu -- -- -- rest 27-33 -- --
Mo 8.5-10 -- -- -- -- 15-17 --
Ti ≤0.4 0.4-1 0.3-1 2.0-3 0.35-0.85 -- --
Al ≤0.4 4-5 -- ≤0.5 2.3-3.15 -- --
Fe ≤1.0 -- ≤0.5 ≤1.0 ≤1.0 4.0-7.0 --
Nb 3.5-4.15 -- -- -- -- -- ≤1.0
Co -- -- -- -- -- -- --
V -- -- -- -- -- ≤0.35 --
W -- -- -- -- -- 3.0-4.5 --
Impurities ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
