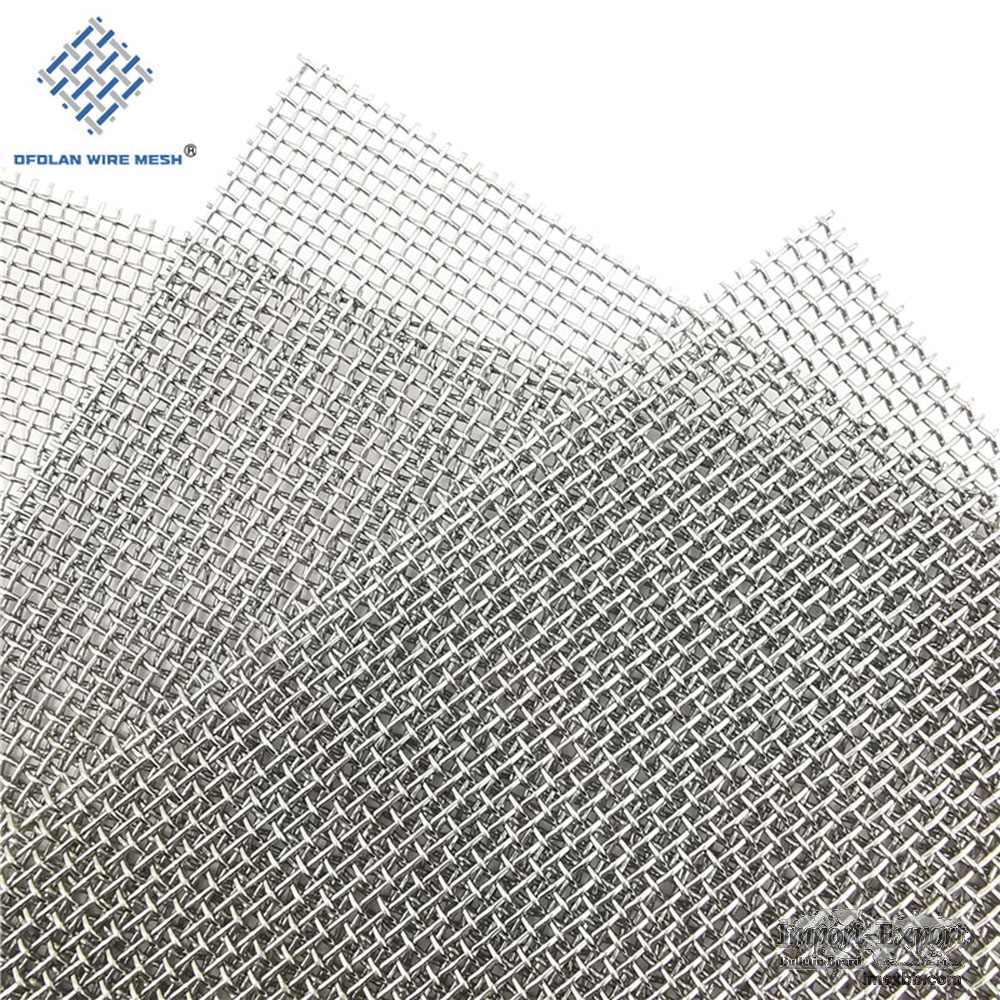

Nickel Copper Alloy Wire Mesh

Product Name Nickel Copper Alloy Wire Mesh Alloy Perforated Metal Stretch Metal
Laser Perforated Metal
Brand Monel400UNS N04400W.Nr.2.4360
Mesh Number Mesh Size 0.5-300Mesh 0.3X0.5mm 1X2mm 2X3mm 3X6mm 4X8mm 5X10mm,1
hole 1 distance, 2 holes 2 distances, 5 holes 5 distances, etc.
Wire Diameter Thickness 5.0mm-0.05mm
Weaving Method Plain weave Twill weave Mat weave Diamond hole Round hole
Square hole Oblong hole, hexagonal hole
Density 8.9g/cm3
Melting Point 1325-1370℃
Characteristic
Monel400N04400 monel alloy woven screen is a corrosion-resistant alloy with high
dosage, application and comprehensive performance. It has excellent corrosion
resistance in hydrofluoric acid and fluorine gas media, and also has excellent
corrosion resistance to hot concentrated alkali solution. It is also resistant to
corrosion by neutral solutions, water, seawater, atmosphere, organic compounds, etc.
An important feature of this alloy is that it generally does not produce stress
corrosion cracks and has good cutting performance.
The metallographic structure of Monel400N04400 monel alloy woven screen is a high-
strength single-phase solid solution. It has extremely good corrosion resistance in
fluorine gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their
derivatives. At the same time, it is more corrosion-resistant than copper-based
alloys in seawater. Acid medium: Monel400N04400 monel alloy woven screen is
corrosion-resistant in sulfuric acid with a concentration of less than 85%. Monel400
is one of the very few important materials that can resist hydrofluoric acid.
Water corrosion: Monel400N04400 monel alloy woven screen has excellent corrosion
resistance in most water corrosion conditions, and pitting corrosion and stress
corrosion are rarely found, and the corrosion rate is less than 0.025mm/a.
High temperature corrosion: The continuous working temperature of Monel400N04400
monel alloy woven screen in air is generally around 600℃. In high temperature
steam, the corrosion rate is less than 0.026mm/a.
Ammonia: Due to the high nickel content of Monel400N04400 monel alloy woven screen,
it can resist corrosion under anhydrous ammonia and ammoniation conditions below
585℃.
Application
Monel400N04400 Monel alloy woven screen application range: Monel400 alloy is a
versatile material that can be used in many industrial fields:
Seamless water pipes and steam pipes in power plants
Seawater exchangers and evaporators
Sulfuric acid and hydrochloric acid environments
4. Crude oil distillation
5. Pump shafts and propellers for equipment used in seawater
6. Equipment for uranium refining and isotope separation in the nuclear industry
7. Pumps and valves used in the manufacture of hydrochloric acid equipment
