NUKR 72 Cam Follower

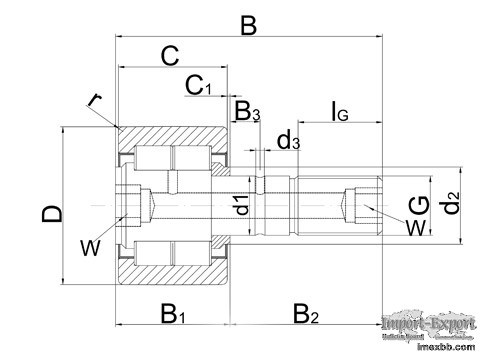

Specifications of NUKR 72 Cam Follower
Designation NUKR72
(Mass) m≈g 1020
Dimensions D 72
d1 h7 24
B 80
B1 max 30.6
B2 49.5
B3 11
C 28
C1 1.3
r min 1.1
d2 44
d3 4
G M24X1.5
LG 25
W2) 14
Eccentric sleeve de h9 28
Be 22
e 1
Grease fitting NIPA3X9.5
Tighthening torque MA [Nm] 220
Basic load rating Basic dynamic load rating Crw [N] 44600
Basic static load rating Corw [N] 64000
Fatigue load limit Curw [N] 31000
Rotating speed nDG [min-1] 62000
Fatigue load limit Curw [N] 8600
Rotating speed nDG [min-1] 2600
As one of chinese bearing manufacturers, we have types of high quality for
sale, if you have needs, please contact us.
Minimum Order: 1 sets
)
