Numeric Keypad Industrial Metal Keyboard Electroplated 20mA With Full Keys

PRODUCT DESCRIPTION

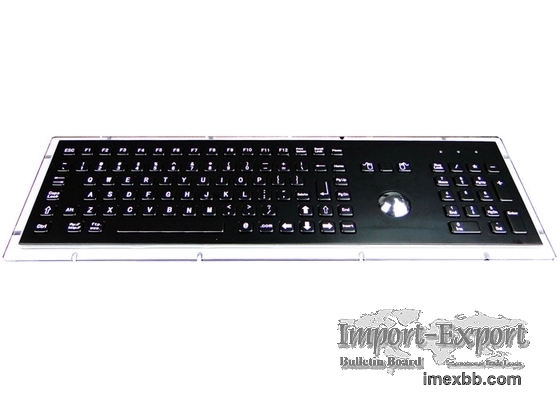

Electroplated Black Industrial Metal Keyboard with Full Keys and Optical
Trackball Mouse


MKB-FN103A-TB-B-2

Key Features
1) 103 keys(of them 12 function keys) panel mount
2) Integrated optical trackball and numeric keypad
3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile
feel
4) Specially designed to operate in harsh environments, making it ideal for
kiosks and other applications in harsh environment
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface for option
8) Customizable layout upon customers request


Items Specifications
Product Description -Electroplated black,rugged stainless steel, water-
proof, vandal-proof, panel mount keyboard with 103 customizable,full travel
keys, integrated OPTICAL trackball,12 function keys and numeric keypad
Application
- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing
kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground
mine etc.

Key Features
- 103 keys(of them 12 function keys)

- Panel mount from the rear side
- Integrated optical trackball,12 function keys and numeric keypad
- Protruding full travel(2.0mm)keys with excellent tactile feel

- Etched characters and graphics makes it durable for long use
- Specially designed to operate in harsh environments, making it ideal for
kiosks and other applications in harsh environment
- Exposed parts made of stainless steel, high vandal-proof,meet IK07 standard
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout upon customer’s request

Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy

- Trackball: Stainless steel(Dia: 38mm)

Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability
- MTBF:>20,000 hours

- MTTR:<30 minutes

Certification - FCC,CE,RoHS
Dimension - Front panel: 478.00 x 135.00
- Back panel: 502.00 x 159.00, thickness:49.10mm (to the tallest component)
Weight -2.20 kgs
