ODM 20X Optical Zoom PTZ Camera

Product Description

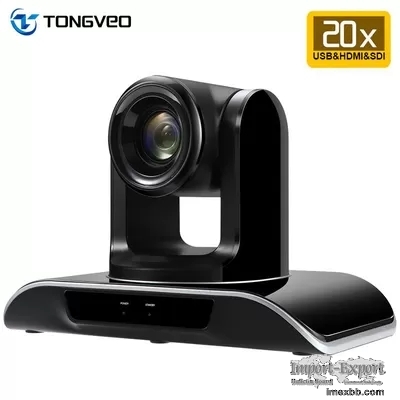

Distance Education 20X Optical Zoom PTZ Camera

* 20X optical zoom

* Sleek and intelligent design
* Crystal clear HD1080P image quality
* Preset: 9 via IR remote setting (256 via RS232)
* Wide field of view with no video distortion
* 1/3 inch high quality, 2.38MP (16:9)CMOS sensor
* Superior quality with Full Glass Lens Material
* HD-SDI, HDMI , USB Video Output
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very
smooth

Model No.

TEVO-VHD20N

Image Sensor

1/3 inch HD CMOS

Effective pixel

2.38 mega pixel(16:9)

Horizontal Resolution

1080P60/50/30/25, 1080I60/50/30/25, 720P 60/50

Focal length

F=4.7mm(wide)-94.0(tele)

Sign , al standard

NTSC/PAL

Zoom

20x zoom

Horizontal view angle

Near-end 55.5°~Far-end 3.0°

Gain control

Auto/manual

Focus

Aut , o/manual

SNR ratio

≥50dB

Shutter speed

1/1 sec to 1/10000s (22 steps)

Preset position

Remote-controller supports 9 presets,

PELCO Control Protocol supports 256 presets

Pan/Tilt movement range

Pan: 340°(Max Speed 80°/S), Tilt: 120°(Max Speed 60°/S)

Control terminal

RS-232, RS485

Control Protocol

VISCA, PELCO-D, PELCO-P (RS-232, RS485)

Video output

3G-SDI, DVI (convertible to HDMI)

Noise Reduction

2D/3D

Baud rate

2400/4800/9600/19200bps

Decoder ,

Built-in

Address Set

1~256

Installation

Suppor , t desktop, Tripod, Wall mount and Ceiling mount


Distance Education 20X Optical Zoom PTZ Camera

Distance Education 20X Optical Zoom PTZ Camera
