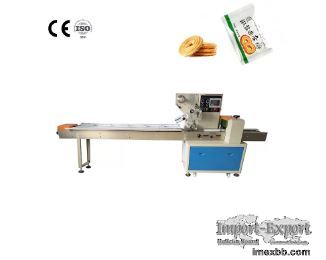

ODM Pillow Packaging Machine 120bags/min Chocolate Bar Wrapping Machine

Biscuit Packing Machine Features:



Model JY-250B/D JY-350B/D JY-400B JY-450B
Film width Max.250mm Max.350mm Max.400mm Max.450mm
Bag length
65-190mm/90-280mm

90-220mm/120-330mm

65-190mm /90-280mm
90-220mm/120-330mm 120-400mm 120-500mm
Bag width 30-110mm 50-160mm 50-180mm 50-180mm
Product’s height Max.45mm Max.60mm Max.70mm
Max.80mm
Packing speed 40-230bags/min 40-180bags/min 30-150bags/min 30-150bags/min
Power 220V 50/60HZ 2.4KW 220V 50/60HZ 2.6KW 220V 50/60HZ 2.8KW
220V 50/60HZ 2.8KW
Machine dimension 3770x670x1450 4020x770x1450 4020x800x1450
4020x820x1450
Machine weight 500kg 450kg 600kg 650kg


1. Dual frequency conversion control,Bag length can be set and ,cut in one
step,saving time and film.

2. Interface features easy and quick setting and operation.

3. Self failure diagnosis,clear failure display.

4. High sensitivity photoelectric eye color tracing,numerical input of cutting
sealing position for extra accuracy.

5. Temperature independent PID control,more suitable for package different
materials.

6. Positioned stop function,without sticking knife or wasting film.

7. Simple driving system,reliable working,convenient maintenance

8. All control is realized through software,easy for function adjusting and
technical upgrade.
