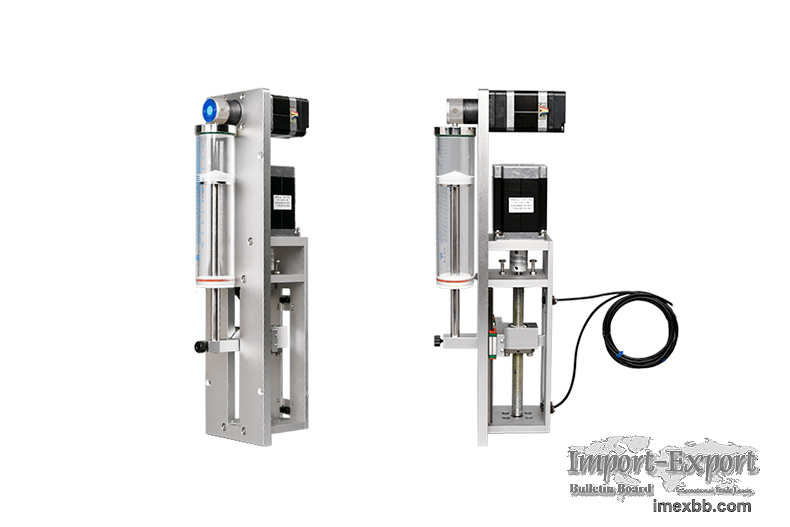

OEM Syringe Pump

syringe pump oem usually is customized with 50ml or 100ml in higher capacity
liquid handling of OEM systems. High accuracy and high repeatability make it
very popular for constant specific volume dispensing system, programmable
control system also make it more flexible in different applications and fields.

Specification of OEM Syringe Pump

Volume 50ml, 100ml
Accuracy ≤1% @100% stroke
Repeat accuracy 0.3%– 0.7% @100% stroke
Pressure 0-1.0Mpa (air) 0-1.2Mpa (water)
Service life 3 million times no leakage (media: water)
Detection Photosensor check original piston position for accurate
location
Actuator Ball screw (Lead 2mm)
Fluid path Borosilicate cylinder, PTFE piston, PTFE outlet
Max pressure Positive air pressure 0-1.0Mpa / Negative air pressure 0-
0.05Mpa
Connection 1/4-28UNF
Communication RS232/RS485/CAN
Baud rate RS232/RS485: 9600dps, 19200dps, 38400dps, 57600dps, 115200dps
CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps
Device add. & Parameter setting Serial Pont
Dimension (L*W*H) Different model different dimension
Power supply DC24V/1.5A
Working temperature 5 – 55℃
Working humidity < 80% relative humidity, non-condensing
Delivery time About 20-25working days

Driver Port of OEM Syringe Pump



Port Description Port Description
H CANH B+/B- Phase B wiring
L CANL A+/A- Phase A wiring
A RS485 A O1 Optocoupler
wiring
B RS485 B O2
GND GND O3
RX RS232 RX V1
TX RS232 TX V2
- DC24V positive V3
+ DC24V negative GND

Minimum Order: 1 pieces
