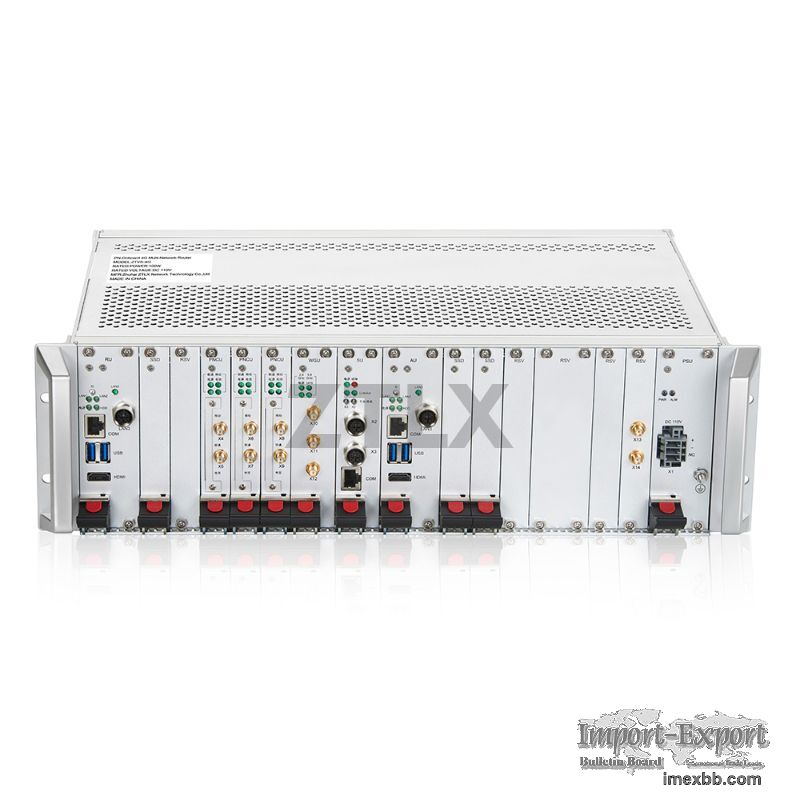

Onboard Multi-Network Router

Onboard Multi-Network Router
Reliable Onboard Connectivity for Railway Communication Systems
The Onboard Multi-Network Router is a core communication device designed for
railway and transit onboard network systems. It provides stable and continuous
data connectivity by integrating multiple cellular networks, serving as the
central gateway between onboard equipment and ground communication
infrastructure.
ZTLX Onboard Multi-Network Routers are developed specifically for mobile
railway environments and are widely applied in high-speed rail, metro, light
rail, and intercity train systems. They form the backbone of onboard networks
supporting passenger Wi-Fi, train-to-ground communication, video services, and
operational data transmission.
Key Functions of an Onboard Multi-Network Router
As the central node of onboard communication architecture, an Onboard Multi-
Network Router is responsible for:
Aggregating multiple cellular network connections for onboard data transmission
Acting as the primary gateway between onboard systems and ground networks
Supporting continuous connectivity during train movement
Enabling unified management of onboard communication traffic
It is typically deployed together with onboard wireless access points (AP),
access controllers (AC), onboard Ethernet switches, and other onboard
communication devices.
Product Categories
Onboard 4G Multi-Network Router
The Onboard 4G Multi-Network Router is designed for railway projects
operating on existing LTE networks. It is suitable for cost-effective
deployments while maintaining reliable onboard connectivity.
Typical application scenarios include:
Metro and urban rail onboard communication systems
Standard railway onboard Wi-Fi systems
Train-to-ground data transmission over 4G networks
Retrofit projects upgrading legacy onboard networks
Onboard 5G Multi-Network Router
The Onboard 5G Multi-Network Router is developed for next-generation railway
communication systems requiring higher bandwidth and advanced network
capability. It supports modern onboard network architectures aligned with
future railway digitalization.
Typical application scenarios include:
High-speed rail onboard communication systems
5G-enabled onboard Wi-Fi solutions
Data-intensive onboard applications
New railway projects planning long-term network upgrades
Application Scenarios
The Onboard Multi-Network Router is widely used in the following railway and
transit applications:
Onboard Wi-Fi Systems for passenger and crew connectivity
Train-to-Ground Communication Systems for real-time data exchange
Onboard Video Services including video distribution and management systems
Operational Data Transmission for monitoring and system management
Integrated Railway Onboard Network Solutions combining routing, switching, and
wireless access
Integration with Onboard Network Systems
The Onboard Multi-Network Router is designed to operate as part of a complete
onboard communication system. It can be seamlessly integrated with:
Onboard Wireless Access Points (AP)
Onboard Wireless Access Controllers (AC)
Onboard Ethernet Switches
Onboard video and data servers
This modular architecture allows flexible system design based on different
railway project requirements.
Why Choose ZTLX Onboard Multi-Network Router
Dedicated design for railway onboard environments
Proven suitability for high-speed rail and urban transit systems
Flexible deployment for 4G and 5G network architectures
Designed for integration into complete onboard communication solutions
Suitable for large-scale railway and transit projects
ZTLX provides not only onboard devices but also system-level onboard network
solutions tailored to railway applications.
