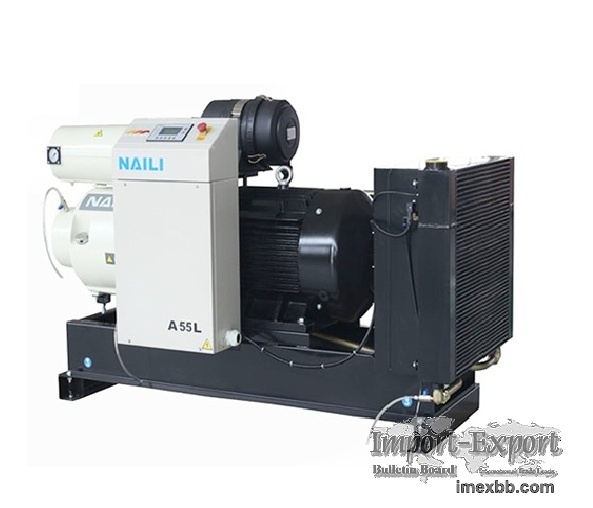

Opened Type Vane Compressor

Opened Type Vane Compressors are a kind of positive displacement rotary
compressor that operate using a set of vanes mounted in a rotor, which rotates
inside a cylindrical chamber.

Operating Steps:
Air Intake:
As the rotor spins, centrifugal force pushes the vanes outward against the
chamber wall, creating air-tight compartments between each pair of vanes.

Air Compression:
As the rotor turns, the volume of each air compartment decreases as it moves
through the chamber, compressing the air inside.

Air Discharge:
The compressed air is then pushed out through the discharge port at the end of
the compression cycle, delivering steady, pulse-free airflow.
