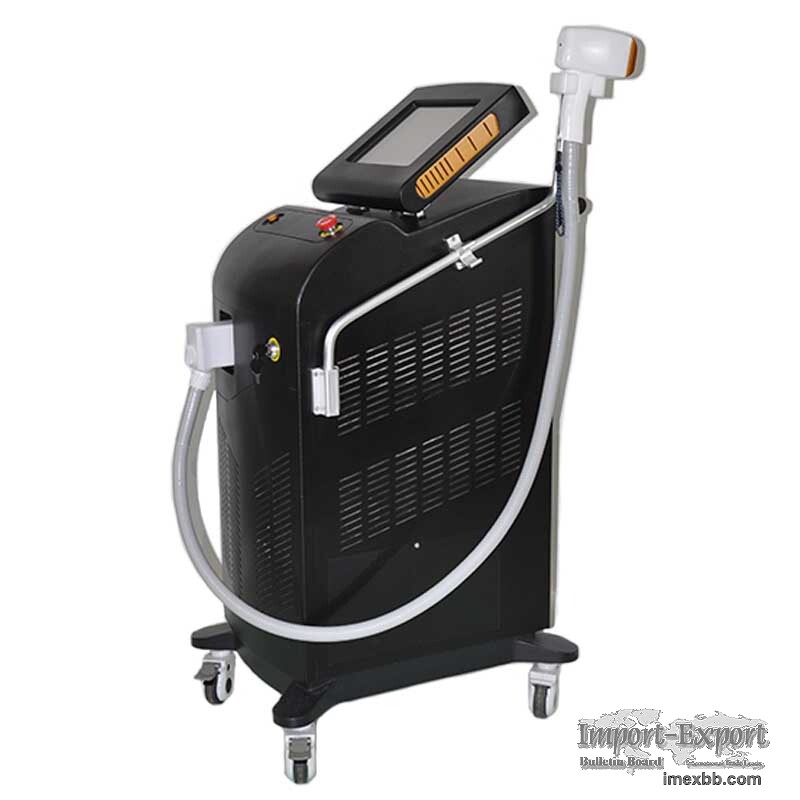

oprano Diode Laser Hair Removal

Soprano Ice Version Diode Laser System
808nm or 755nm+808nm+1064nm for your option.
Professional choice for dermatologist


Applications：

Fo , r any unwanted hairs on areas of face, arms, armpits, chest, back, bikini,
legs and etc.
(including light, blond and thin hairs)

Working Principle:
Diode laser hair removal technology is based on the selective dynamics of light
and heat. The laser goes through the skin surface to reach the root of hair
follicles; light can be absorbed and converted into heat damaged hair follicle
tissue, so that hair loss regeneration without injury surrounding tissue.
Slight pain, easy operation, the most safe, technology for permanent hair
removal now.
It is performed using gold standard 808nm or Triple-
wavelength(755nm+808nm+1064nm) diode laser technology, with energy penetrates
deep into the dermis with high average power and a rapid 10 pulse-per-second
repetition rate to heat the hair shaft and hair follicle, rather than destroy
the oxygen organization around hair follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire tip
can eliminate the heat effect attributed to optical energy, greatly improving
both the treatment performance and safety.

Technical Specifications:

Laser Type Diode Laser
Laser Stacks Power 600W(800W for your option)
Wavelength (Spectrum) 808nm/Triple-wavelength-755nm+808nm+1064nm
Ener , gy Density (Fluence) 1-100J/cm² (Continuously adjustable)
Spot Size 12*20mm² (standard),12*35mm² (for option)
Pulse Repetition Rate 1-10Hz
Pulse Duration 10-300ms
Pulses Single

Cooling • Continuous Sapphire contact cooling(-5℃~1℃)
• Air cooling
• Closed water circulation cooling
• TEC Semi-conductor cooling
Stand-by Working Continuously for 20 hours
Display 10.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
Net Weight 65kgs
Dimensions (WxDxH) 400*620*1100 mm

Minimum Order: 1 sets
