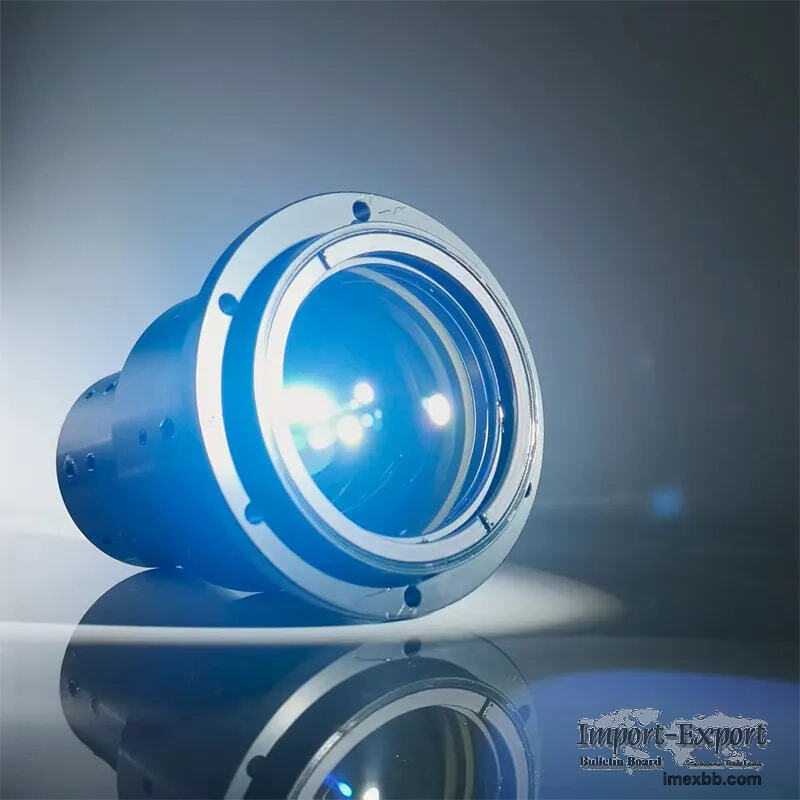

Optical Design

● Optical System Architecture Design
● Structural Design
● Stray Light Analysis
● Structural and Fluid Simulation
● Tolerance Analysis
● Yield Analysis

Optical design is a systematic process aimed at fulfilling requirements related
to imaging quality, operational conditions, and cost-effectiveness by defining
the structural parameters and performance specifications of optical systems.

The process involves two primary stages: preliminary design and aberration
correction. During the preliminary design phase, conceptual schematics are
developed and external dimensions are calculated. The aberration correction
phase focuses on determining critical parameters such as lens curvature and
thickness to optimize optical performance and minimize imaging distortions.
