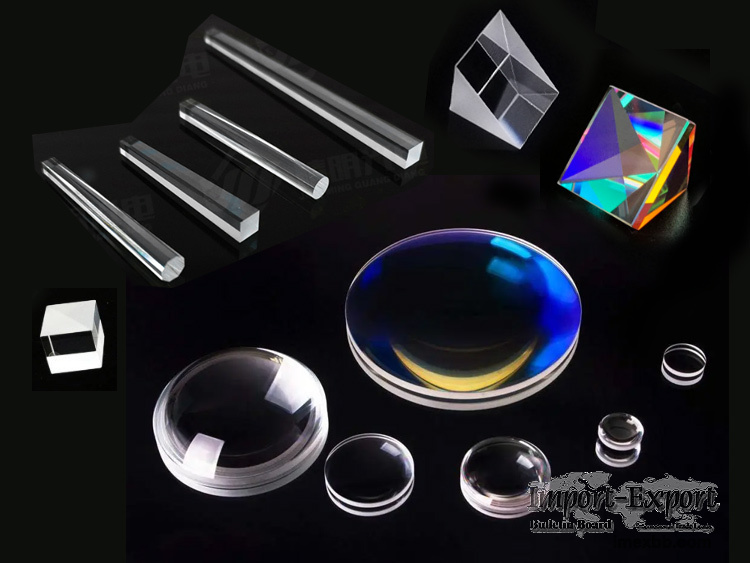

Optical Glass

Optical glass, also known as optical lenses or glass lenses, is typically
categorized as plano-convex (PCX), double-convex (DCX), plano-concave (PCV), or
double-concave (DCV) lenses. They are commonly made from materials such as
soda-lime, borosilicate, and quartz, with diameters varying from 1mm to 300mm
and tolerances held to within ±0.1mm. Distinguished by their scratch
resistance, these lenses are easy to clean and maintain due to their polished,
smooth surfaces that resist oil and chemical contamination. Notably, quartz
glass lenses boast a high light transmittance rate of up to 95%. These lenses
are essential in various domains including daily life, science, education, and
industry, being integral components in lights, cameras, microscopes,
telescopes, and collimators, among others.

Optical Glass
Optical Glass
Advantages:

Chemical Stability and Easy Maintenance: The glass material’s anti-corrosion
properties make it easy to clean and maintain.
Precise Tolerance: With over a decade of experience in optical glass
manufacturing, we can tailor tolerances to meet your needs, even achieving
minimal values for high-precision applications.
Surface Covering: Our surface coverings assist in anti-reflection and
filtering.

Applications:

Magnifi , cation: Convex lenses serve as magnifying glasses, aiding in the
observation of minuscule objects.
Education: Optical lenses play a significant role in physics and are widely
used in schools for educational purposes.
Instrumentation: Medical, biological, and astronomical instruments such as
microscopes, telescopes, and collimators frequently employ optical lenses.
Photography: Glass lenses are integral to the imaging process in cameras.
Lighting: Optical glass aids in light manipulation, concentrating or scattering
rays for specific purposes.

Specifications:

Classifica , tion: Optical lenses are categorized as plano-convex (PCX), double-
convex (DCX), plano-concave (PCV), or double-concave (DCV).
Material: These lenses are made from soda-lime, borosilicate, or quartz.
Diameter: Ranges from 1-300 mm.
Diameter Tolerance: Maintained within ±0.1 mm.
Thickness Tolerance: Controlled within ±0.1 mm.
Curvature Radius Tolerance: Usually ±0.5, but can reach ±0.1% in precision
applications.
Centration: Less than 3 minutes of arc.
Clear Aperture: Over 90%.
Beveling: Below 0.2 × 45° or as per requirements.
Refractive Index: Between 1.4 and 1.6.
