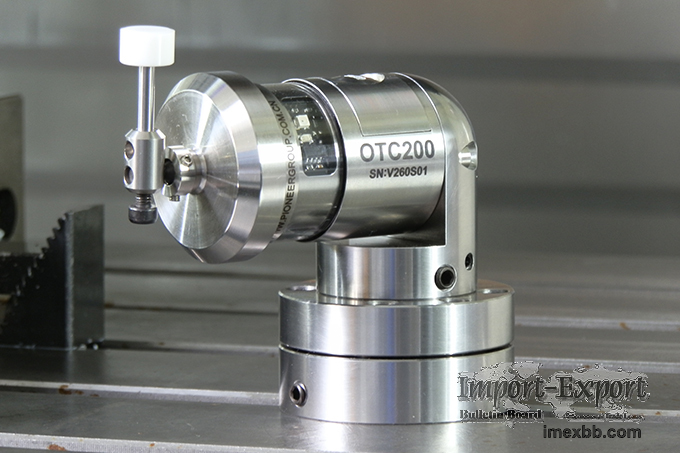

Optical Tool Setter

OTC200 optical tool setter/presetter is a wireless tool setter, optical coded
signals are used to transmit information between the CNC tool setter and the
receiver. It mainly used in various specifications of small to medium machining
centers, CNC milling machines, drilling machines center, and so on. It used for
broken tool detection and rapid measurement of tool length and diameter on a
wide range of tools.

OTC200 optical tool setter/optical tool presetter is a wireless tool setter,
optical coded signals are used to transmit information between the CNC tool
setter and the receiver. It mainly used in various specifications of small to
medium machining centers, CNC milling machines, drilling machines center, and
so on. It used for broken tool detection and rapid measurement of tool length
and diameter on a wide range of tools.

Parameter of Optical Tool Setter

OTC200：
Measuring direction ±X，±Y，+Z
Arbitrary direction swinging angle X-Y±12°, Z +5 mm
Repeatability （2σ） ≤ 2 μm；
Optical signal receiving/sending distance >3m
Model of the standard stylus M0-S31.5-CP12.7
Model of the battery 14250，3.6 (V), 2 Pcs
Seal grade IP68

Technical Characteristics of Optical Tool Setter

Tool setter switch on/off method: M code on/off；

Compatible with Pioneer optical modulated receivers (OSI-20M and OSI-30);

Exceptional resistance to light interference with modulated transmission;

Cable-free for unrestricted machine movement and ease of installation.

Application of Optical Tool Setter

For tool measuring on small to medium machining centers.

Detect broken tools in-process

Compensate for environmental and machine conditions

Reduce non-productive time and scrap and increase productivity and profits

Pioneer CNC is a professional probe company, we provide touch probe, probe
cable, machine tool setter and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
