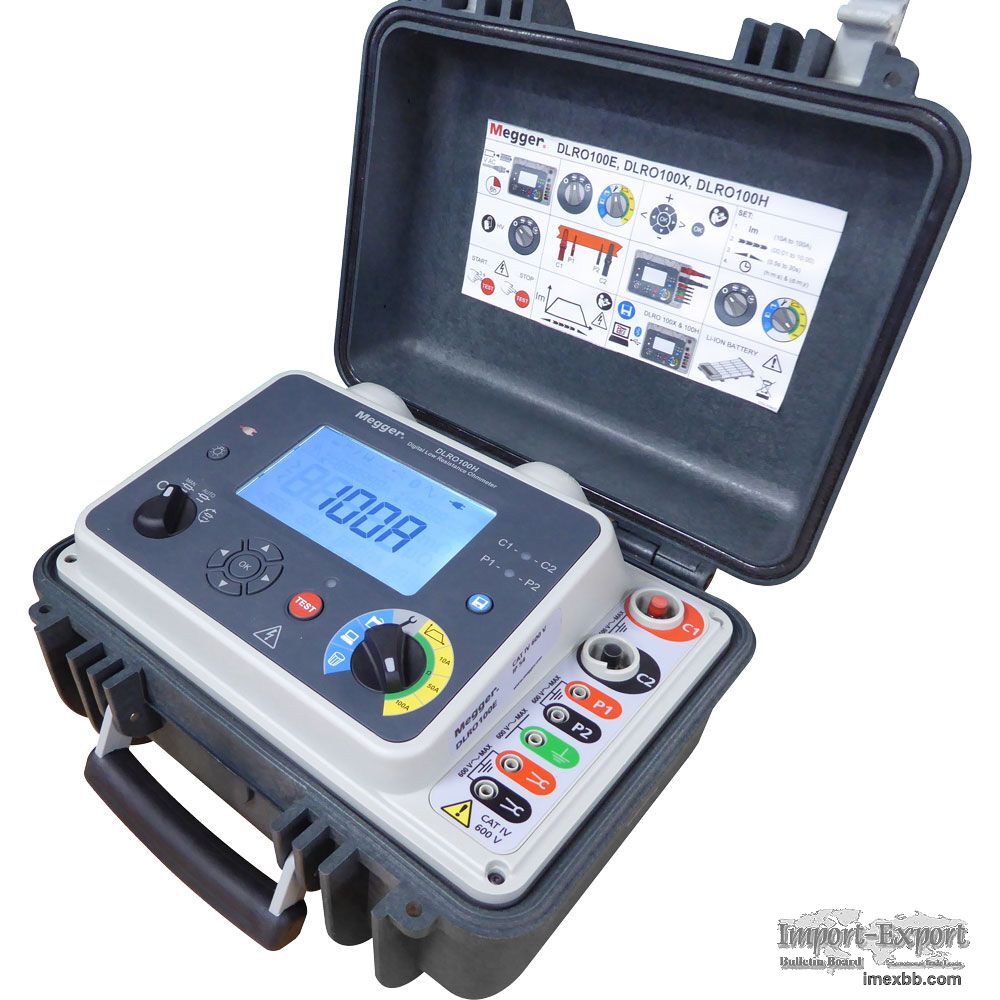

Original Megger DLRO100X – Available at NavaroCalibration.com

Original Megger DLRO100X – Available at Navaro Calibration.


A new addition to the comprehensive range of Megger Low Resistance
Ohmmeters, the DLRO100 enables low resistance measurement, across multiple
applications, in areas without access to mains power.

The integral Li-on battery supplies a constant 100A current for up to 30
minutes or up to 360 Manual/Auto tests to enable enhanced productivity in
remote locations. With a focus on user safety, advanced design features
ensure the safe operation of the instrument in the most adverse conditions,
including a CATIV 600V safety rating in accordance with IEC61010. The
rugged design, intuitive interface and IP54 (lid open) rating ensure
reliability and ease of use in the most arduous of conditions.

Mains Only
Internal Memory
USB
Data Download
Dual Ground: Clamp Optional
Rugged Design for Use in Demanding Environments
Adjustable 10-100A Output, 4 Terminal Measurement
0.1μΩ to 2 Ω Measurement Range
0.1μΩ Resolution
Accuracy of ±0.05 μΩ Between 0.1 μΩ and 10 μΩ, ±0.2% Between 10 μΩ and 2 Ω
CATIV 600V Safety Rating
Battery and Mains Powered
Battery Capacity 360 Single Tests or up to 30 Minutes Continuous 1c00A
output
Memory Storage USB Download Capability
Adjustable Current Ramp Rates and Test Duration
Low Ripple D.C.
IP Rating 67 (Lid Closed) IP54 (Lid Open Battery Operation Only)
Large, Clear LCD Display
Time and Date Stamped Memory for Recording of Results (999 Readings)

Minimum Order: 1 pieces
