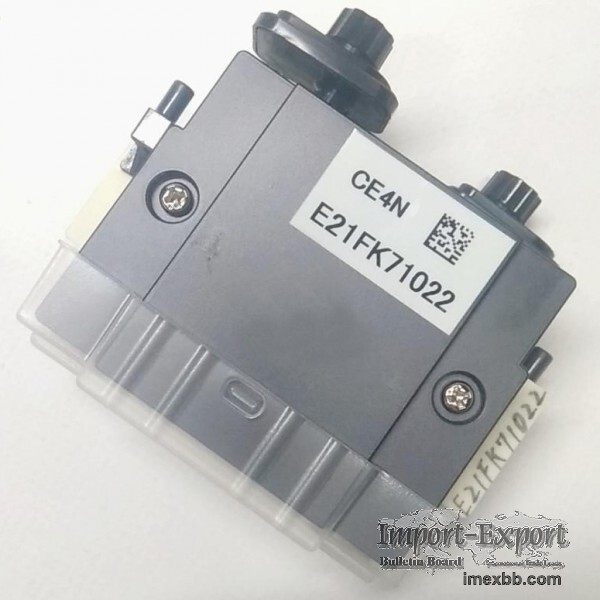

Original Mimaki UJF-6042/UJF6042 printhead CE4N Printhead
Original Mimaki UJF-6042/UJF6042 printhead CE4N head
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number KX-CE308644CS-Gen4). This part does not include the metallic bracket that can be easily re-used from the previous head. If the metallic bracket also needs to be replaced, part number M008386 should be purchased instead.
Product Specifications
Technology: Multi-drop grayscale micro-piezo
Grayscale levels: 16
Active nozzles: 318
Print swathe width: 53.6 mm
Nozzle pitch: 169 μm
Native resolution: 150 dpi
Printhead weight: 148 g
Dimensions: 85 x 70 x 23 mm
Drop volume: 6 - 90 pl
Typical firing frequency: 2.8 - 28 kHz
Ink Compatibility: oil-based pigment ink and UV curable pigment ink
Printer compatibility
Mimaki JFX-1615
Mimaki JFX-1615Plus
Mimaki JFX-1631
Mimaki JFX-1631Plus
Mimaki UJF-706
Mimaki UJV-110
Mimaki UJV-160
Minimum Order: 1 pieces
)
