Overhead Transmission Line Composite Suspension Insulators High Voltage Ins
PRODUCT DESCRIPTION
Overhead Transmission Lines Composite Suspension Insulators For High Voltage
25 Kv
product
The features of Overhead Transmission Lines Composite Suspension Insulators
For High Voltage 25 Kv
1.The Composite Insulator are made of glassfiber epoxy core rod, silicone
rubber shed and metal fittings.
2.The silicon rubber shed adopt the whole packing pressure technique, and
then to solve the key problem – interface electric spark puncture,
which would affect the reliability of composite insulator.
3.Connection of the glassfiber rod and metal fittings, adopts the pressure
welding technique of the international advanced level, and have the full
automatic sound wave detection of defects system, high intension, beautiful
outline, small volume, light weight, and the metal fitting of
galvanization can corrosion prevention and exchange used with porcelain
insulator.
4.This product is reliable structure, can’t damage the core rod, and take
full advantage of the mechanical strength.
Produds Code
Voltage KV)
SML
(KN)
Section Lengh (mm)
Arcing
Distance
(mm)
Cree , page
Distanoe
(mm)
Wet Power
Frequency
Wthstand
Volt , age(N)
Lighting Impulsed Withstand
Voltage()
Top Fittng
(mm)
Bottom Fitting
(mm)
T2515
25
100
800±
20
570
1600
150
300
Tongue with
hole φ21
Tangue
with hole φ21
T2516
25
120
700±
10
414
1300
95
250
Tongue with
hole φ20
Tongue
with hole
φ20
T2517
25
135
700±
10
414
1200
125
270
Tongue with
hole φ20
Tangue
with hole
φ20
Polymer Insulator Character
Easy installation by light weight
Excellent mechanical strength
Excellent insulation in contaminated environment
Good Hydrophobic Performance
Good Raw material
We use HTV silicone rubber which hydrophobicity can reach to HC1 level
We use hot dip Galvanizing steel fitting ,the thickness of the zinc more
than 100 μm
We use ECR rod as the core which is high acid resistant. 7200Hr testing
passed
)

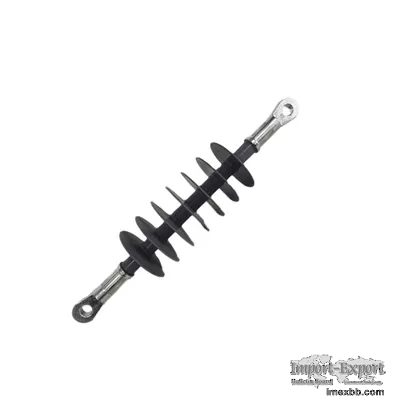

Click to Enlarge
