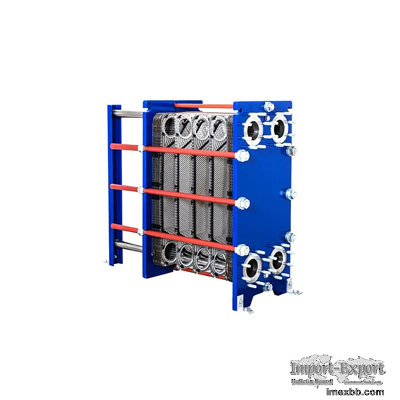

PanPHE gasketed plate heat exchangers

PanPHE gasketed plate heat exchangers are designed with easy access for regular
servicing and for a long, low-maintenance lifetime with low life-cycle costs.
It consists of a plate pack of a calculated number of corrugated plates with
perimeter gaskets clamped securely with tie rods between two thick carbon steel
plates. The plates have openings at the corners to direct process and service
fluid flows through the interplate passageways. Fluids flow alternately between
plates in order to achieve high-efficiency heat transfer. The thin fluid flow
and the high turbulence produce low pressure drops and extremely high heat
transfer coefficients.
PanPHE plates are pressed in a single stroke by large tonnage hydraulic
presses. This enables compliance to extremely tight tolerances, allowing large
plate packs to be perfectly aligned in an assembled plate heat exchanger. We
use plate material of the highest quality and optimum thickness making our
plates more reliable and longer-lasting.
