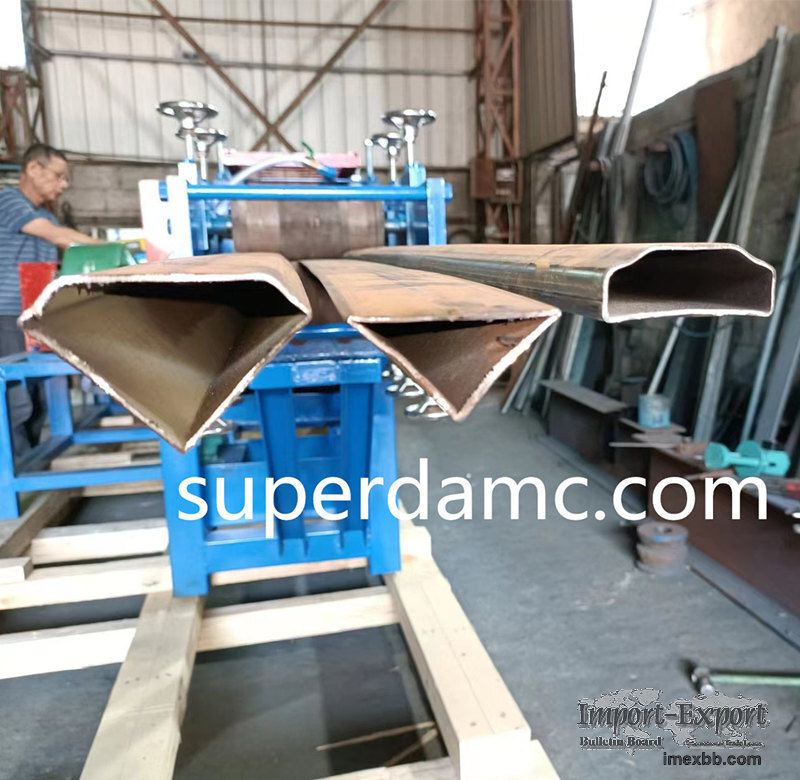

Pentagonal Pipe Making Machine & Polygonal Tube Manufacturing

One steel tubing machinery for D shape tube, pentagonal tube, triangle tube
shaped tubing.

3 kinds of shaped tubes making in one roll forming machine.
https://www.superdamc.com
sales@sup , erdamachine.com

D shape tube ( half round tubes, semi circle pipe) roll forming machine

Customized Mild Steel D shape Pipe & Triangle tube & Pentagonal tube forming
machine technology

Dia. Round tube Dia.57mm, Dia.54mm, Dia.48mm original tube raw material.

Model SP-3S
Motor power 7.5KW
Reducer 350 type
Feed material iron pipe
Feeding round tube diameter 1.5 inch (cun)
Forming Roller 8 forming + 2 straightening
Working speed 10 meters / minute
Roller material GCr15 heat treatment after finishing
Spindle material 40Cr after quenching and tempering
Transmission mode Gear

Minimum Order: 1 sets
