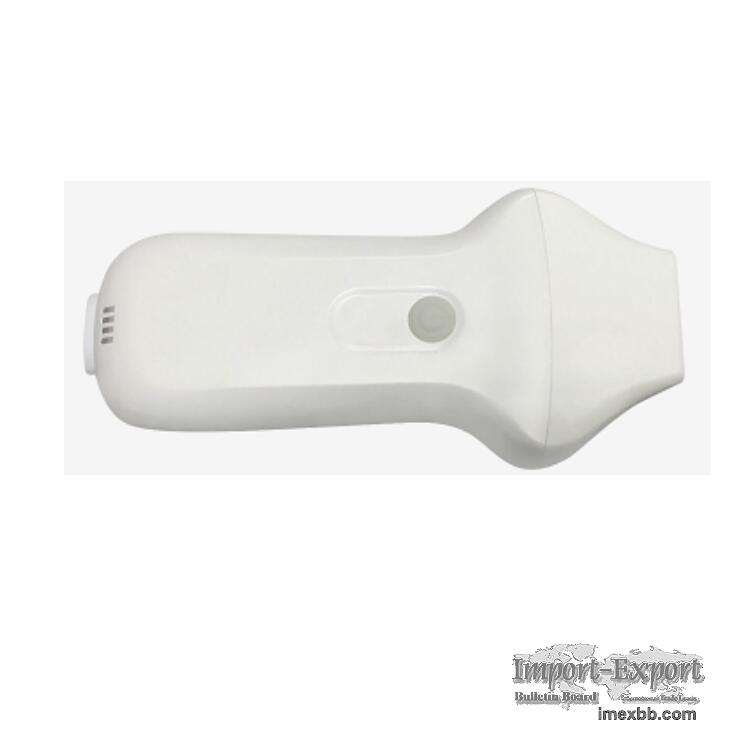

phased array palm doppler ultrasound scanner

Specifications:


- Scanning mode: Electronic phased array

- Channel of RT: 64

- Display mode: B, B/M, and Color, PW, PDI

- Frequency: central 2.8MHz, cardiac reverse harmonic

3.6mhz, and the transcranial fundamental 2.5MHz

- Display Angle: 80°

- Display Depth: 90/130/160/190mm

- Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

- Puncture assist function: the function of in-plane

puncture guide line, out-of-plane puncture guide line,

automatic blood vessel measurement.

- Noise reduction: 0-1-2-3-4

- Gain: 30db-105db

- Dynamic Range: 40/50/60/70/80/90/100/110

- Measure: Length, Area, Angle, Heart

- Image frame rate: 15~20 framescond

- Battery working time: 1.5hours

- Charge: by USB cable charger

- Dimension: 140×60×20mm

- Weight: 120g

- Wifi type: 802.11g/20MHz/5G/450Mbps

- Working system: Apple iOS and Android, Windows



Product Configuration:
Standard Configuration：Wireless Probe Type Ultrasound Scanner x 1 unit, USB
Charging Cable x 1pc
Optional：Carrying Bag or Aluminium Suitcase, Stainless Steel Puncture
Guide, Android or iOS Phone/Tablet, Wireless Power Bank, Tablet Bracket,
Trolley

Minimum Order: 1 sets
