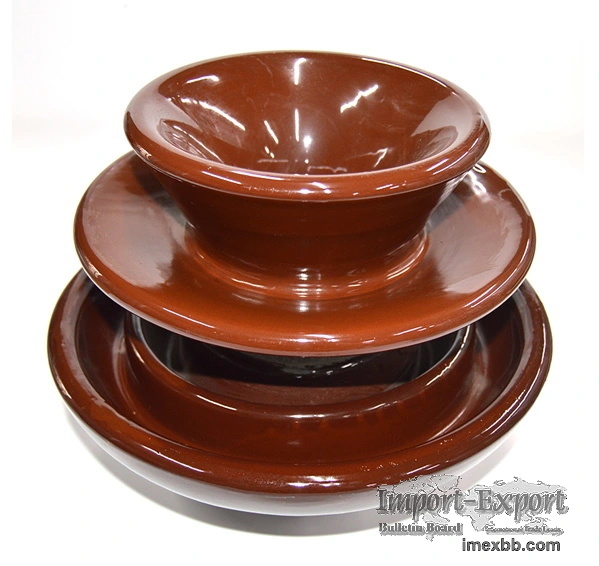

Pin Insulator

We produce a large variety of high- and low-voltage disc pin insulator that are
extremely resistant to lightning punctures and are intended for distribution
systems. like PQ-36Y, P-11-Y, P-15-Y, P-20-Y, and P-33-Y.

Single- or multi-piece disc and pin insulators are frequently found in
inexpensive distribution lines. These insulators are less likely to break
because of their multipiece construction, which allows them to withstand line
voltage for extended periods of time even when one of their shells breaks.

Applications of Pin Insulator
22 kv pin insulator serve a crucial role in electrical distribution systems,
providing electrical insulation and mechanical support to conductors in
overhead power lines. Their distinctive design, often resembling a cylindrical
or barrel shape, features a central spindle that can be attached to a
supporting structure, such as a crossarm on a utility pole. The primary
applications of Pin Insulators include:

Overhead Power Lines

Pin Insulators are commonly used in overhead power distribution lines to
suspend and insulate conductors. They help maintain a safe and reliable flow of
electricity from power generation sources to end-users.

Utility Poles and Crossarms

These electrical pin insulator are mounted on utility poles and crossarms to
support the conductors at specified intervals. The pin-type design allows for
easy attachment and secure installation.

Substation Equipment

Pin Insulators find application in electrical substations, providing insulation
for conductors connected to various substation equipment, such as transformers
and circuit breakers.

Hebei Yongguang Line Equipment Co., Ltd. is a pin insulators suppliers, we
provide insulator pins for sale, wire end lugs, line equipment, etc. For 33kv
porcelain pin insulator specifications or 22 kv pin insulator price, please
feel free to contact us!

Minimum Order: 1000 pieces
