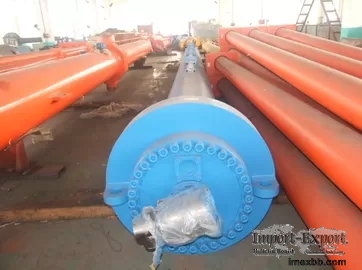

Plane Rapid Gate Electric Hydraulic Cylinder , Simple Hydraulic Cylinder

PRODUCT DESCRIPTION
Plane Rapid Gate Electric Hydraulic Cylinder , Simple Hydraulic Cylinder



Hydraulic hoist

Plane rapid gate hydraulic hoist





Key Specifications/Special FeaturesKey Specifications/Special Features



Application industry

water conservancy, mechanical/marine/mining equipment, oil industry, vehicles,
energy and port facilities

Stroke length

50 to 16,000mm

Tube inner diameter

80 to 1,050mm

Piston rod diameter

45 to 600mm

plate

Ni/Cr/ceramic

Wor , king pressure

70 to 700 bars

bearing

LONGXI(china)or SKF

Seal type

common stand or in accordance with client's requirement (we usually use Parker from
USA or MERKER from Germany)

valves

parker/rexroth/atos/ , hydcom

Certification

DNV, ABS, Lloyds, BV, SGS, GL, and CCS

Material

carbon, alloy, stainless steel



Detail manufacturing drawings to be submitted to buyer for approval before
manufacture is commenced

QPKY series hydraulic hoist mainly apply to opening and closing of the common plane
rapid gate in hydropower project, the basic parameters and the shape of
installation size is exactly the same as QPKY Ⅱseries, except the hydraulic
control valve using speed control one.



QPKY Series hydraulic hoist, Plane rapid gate hydraulic hoist



Hydraulic cylinder is the hydraulic energy into mechanical energy, reciprocating
motion to do (or swing movement) of the hydraulic actuators. It is simple,
reliable. Use it to achieve reciprocating movement can be removed from deceleration
devices, and no transmission gap, smooth motion, so in a variety of machines are
widely used in hydraulic systems. Hydraulic cylinder output force and the effective
area of the piston is proportional to the pressure difference on both sides;
hydraulic cylinder is basically a cylinder and cylinder head, piston and piston
rod, seals, cushioning device and the exhaust composition.
Buffer device and the exhaust depending on the specific application of the
occasion, other devices are indispensable.

Cylinder and cylinder of the advantages and disadvantages:
1. As the pneumatic system uses pressure is generally in the range of 0.2-1.0Mpa,
so the cylinder is the driving force can not do high-power components. Hydraulic
cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties,
the gas will be used directly into the atmosphere, convenient, no pollution,
hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
4. But the air is much larger than the compression rate of hydraulic oil, so it's
working smoothly and to respond to far backward in this regard.
Hydraulic cylinder hydraulic system is the most important components of
implementation, it can convert mechanical energy of hydraulic and matched with a
variety of transmission to complete all of the mechanical movement. Hydraulic
cylinder has a simple structure, the output force, stable and reliable performance
and easy maintenance, wide range of applications and so on.
