plano concave lens

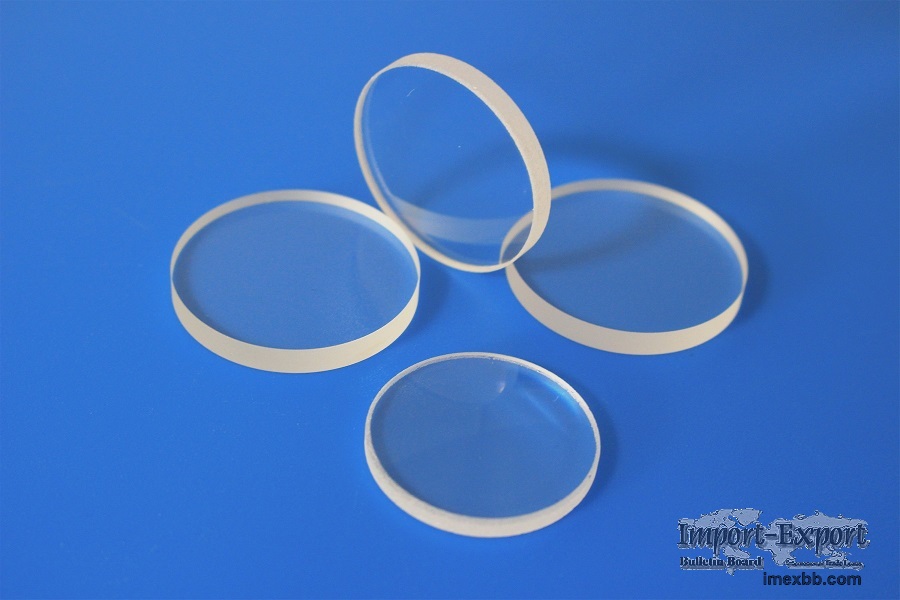

Plano-concave lenses are thicker at the edge than in the center and flat on another surface. Plano concave lens (PCV) has negative focal length. So the lenses are used to bend parallel input rays so they can diverge from one another making them useful for beam expansion and image reduction application. We offer plano concave lenses with anti-reflection coating, which markedly improves the transmission efficiency. AR coated plano concave lenses are widely used in a lot of optical imaging systems.





Custom Made capabilities:

Material N-BK7, UV fused silica, JGS1,N-SF11, Silicon, Germanium, etc.
Diameter available 1.5mm to 700mm
Tolerance +/-0.05mm
Thickness tolerance +/-0.05mm
Surface quality 20/10 or better
Surface accuracy Lambda/4 or better
Centering 1 arc min
Chamfer protective
Coating anti reflective coating for visible, UV, infrared wavelengths and reflective coating for the concave surface, mirror coating

Minimum Order: 10 pieces
