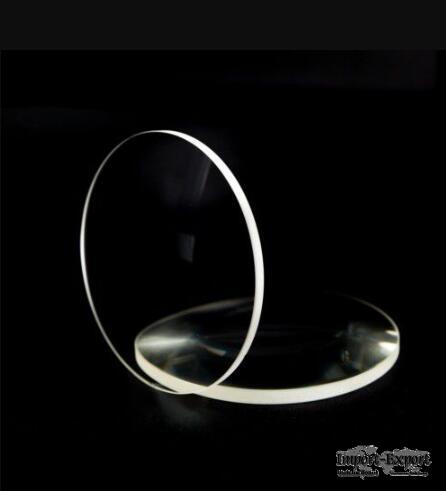

Plano-Convex Lens Spherical Lens

Oplens Plano-convex lens is an optical lens in which one side of the lens is
flat and the other side is convex. The focal length of plano-convex is
positive, mainly for the role of focusing. The collimating beam can be gathered
on the rear focus or the point light source can be transformed into a
collimating beam. Plano-convex lenses are widely used in optical display
system, optical projection system, optical imaging system and laser measurement
system.

Oplens can not only customize the plano-convex lens with common materials of N-
BK7 (Shott) and fused silica, but also customize the plano-convex lens of any
glass material.

Parameters
Material:
Surface Flatness:
Scratch/Dig:
Eccentricity:
Foca , l Length Tolerance
Diameter Tolerance:
Thickness Tolerance:
Clear Aperture:
Coating:
Diameter Range: Optical Glass
< λ/5 @ 633nm
< 40/20 (both sides)
≤ 1arcmin
< ± 1%
< + 0.00/ - 0.02mm
< ± 0.05
≥ 95% of diameter
AR OR BBAR
5~260mm

Oplens is one of leading optical elements and spherical lens manufacturer. We
insist on supply high precision optical products with consistent quality and
professional serve.

You are welcome to contact us for customized plano-convex lenses.

Minimum Order: 10 pieces
