Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car

2Pin Straight Right Angle Electric Car Plug Socket Receptacle EV Connector
Part No.: C1079
Features:
Secondary lock function

Cable range: 25~50mm2

Poka-yoke

HVIL

Touch , -proof

360°shielding

Application:
Motor controller
Lithium battery, lead-acid battery
Driving system
charging system
Specifications:
Rated current: 120A (25mm2) 150A (35mm2), 200A (50mm2)
Rated voltage:1000V
Insulation resistance: ≥4000mΩ(power)≥1000mΩ(signal)
Dielectric withstanding voltage:3500V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K,IPXXB
Parameters:
Rated Current: 120A (25mm2), 150A (35mm2), 200A (50mm2)
Rated Voltage:
1000V

Insulation Resistance: ≥4000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage: 3500V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K,IPXXB
Application: Motor controller, battery, driving system, charging system

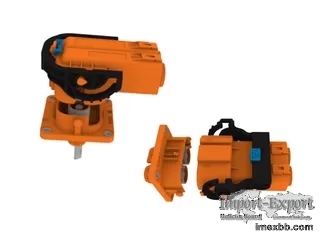

Product Pictures:
Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car 0









Drawings:
C1079 2pin 180° straight plug

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car 1



C1079 2pin 90° right angle plug

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car 2

C 1079 2 pin receptacle



Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car 3

C 1079 2 pin mounting interface design

Plastic Shell Staright Angle 2pin EV Battery Connector For Electric Car 4
