Plate Bending Machine

The plate bending machine china is forging equipment used to bend metal plates.
It is dedicated to the forming and bending work of metal plates. This roll
plate bending machine can pre-bend and roll various cylindrical and arc-shaped
parts with the help of auxiliary equipment. Rolling of cone-shaped cylinders
can be carried out. It is one of the key metal fabrication equipment in the
boiler, shipbuilding, petrochemical, metal structure, cement machinery,
chemical machinery, machinery manufacturing, and maintenance departments.
EZHONG has high quality used steel plate roller for sale.
EZHONG as one of the leading plate rolling machine suppliers has accumulated
rich experience in manufacturing heavy-duty three-roller bending machines, full
hydraulic three-roller bending machines, CNC four-roller bending machines, and
other bending roller machines; China's largest bending machine EZW11X-300*3500
hydraulic three-roller bending machine is manufactured by EZHONG. The maximum
pressing force of the CNC plate bending machine is 7800T, which is second to
the 3 roll bending machine with a pressing force of 8000T from Switzerland
HAEUSLER. And

As a bending machine factory, EZHONG also provides low-cost and high-quality
second hand plate rolling machines.
Plate Bending Machine Working Principle
The purpose of the plate rolling machine is to bend the plates with different
characteristics according to the production capacity.

The production process of the plate rolling machine in EZHONG plate rolling

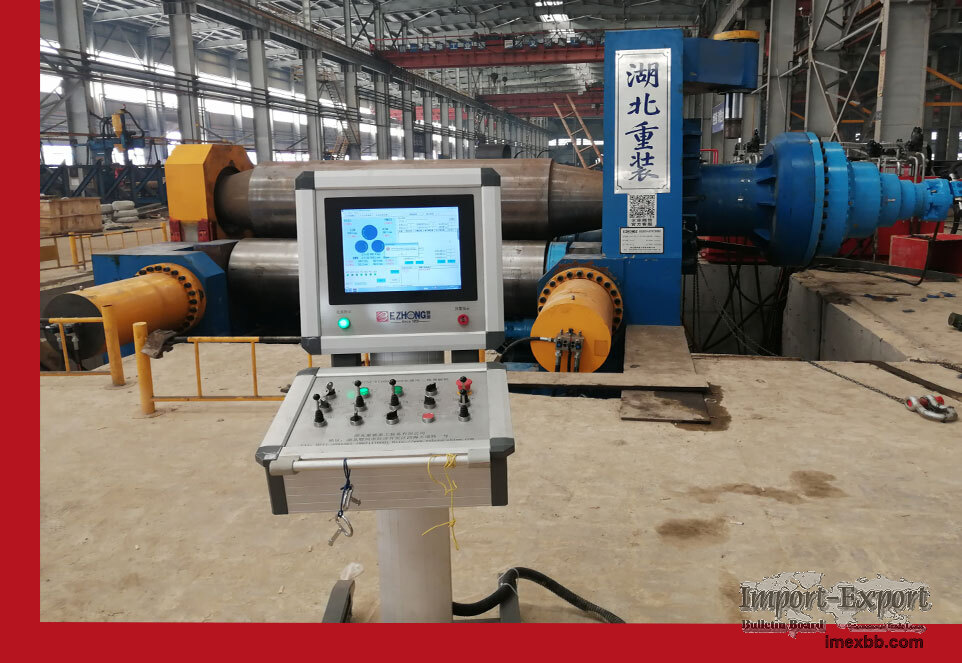

machine China is to operate the machine from the control panel (equipped with
all control equipment and indicator lights) under the control of the operator.

The system of the rolls bending machine must be stable. If something happens to
the metal fabrication equipment, a big problem will occur after a few days, so
how to choose a stable system? You need to check the product history and
customer evaluation, and also need to see the production experience of the
plate rolling machine manufacturers if there are technical elites.
The material and processing technology of work plate rolls require quenching
and tempering to increase the surface hardness; structural parts need to
eliminate stress, and high-precision processing equipment can ensure assembly
accuracy; bearings are also crucial.

The maximum working capacity of the three-roller plate bending machine depends
on the four main parameters of the maximum coil thickness (pre-bending
thickness), the maximum coil width, the coil material, and the minimum diameter
of the coil in the largest specification. These four-parameter variables
influence each other in work. The conversion relationship between the rolling
bending machine, that is, the conversion relationship of the machine's working
capacity, is provided to the user in the random manual so that the user can use
and select the roll plate bending machine more reasonably.
How do you use a plate roll bending machine??
Sheet bending roller machine operation: standard use process.

This machine is a three-roller plate bending machine with pre-bending and
variable center distance. This model is different from the traditional model.
Because the two lower steel plate rollers can move horizontally at the same
time or completely independently, adjust the pitch between the steel plate
rollers; the upper plate rollers can move up and down. Due to the above
characteristics, the bending roll machine and campus capabilities have been
greatly improved, and the coiling thickness has also been greatly increased.

The reverse movement of the upper and lower steel plate rollers should be
braked first and then reverse operation.

The rebound is more pronounced during cold rolling, and a certain amount of
overwinding must be applied. After the required amount of overwinding is
reached, it should be rolled back down to this curvature several times. High-
strength steel has a large rebound. In order to reduce the rebound, it is best
to perform an annealing treatment before the final forming.

After the rolling bending machine workpiece is rolled, the upper steel plate
roller should be raised to more than 300mm on the line and the upper steel
plate roller is in a horizontal state before unloading the workpiece.

More types of roll forming machine second hand for sale, please visit our
website.
