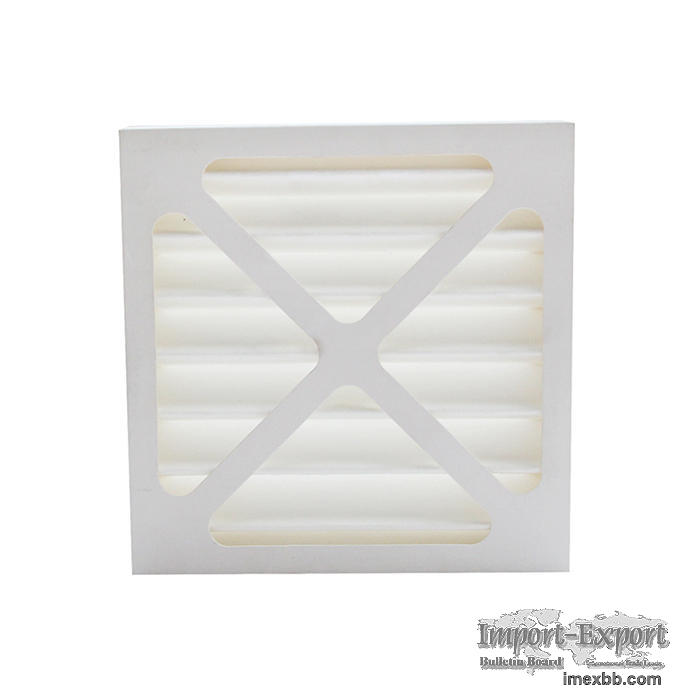

Plate Disposable Filter

Excellent performance, solid structure and other high pleated design.
Imported high-quality fluffy filter material with large dust holding capacity
and good general performance.
M-DP Expanded Pleated Plate Disposable Filter adopts the whole set, die-
cutting, contour pleated, double-layer moisture-proof and high-temperature
resistant cardboard frame plate structure design, compact structure, light and
convenient.
Product Structure Description
The structure of M-DP is simple and strong. The combination of double-layer
die-cut cardboard and filter media forms an integral structural model. The
cardboard is moisture- and high-temperature resistant, and tightly bonded to
the filter media at each intersection, enhancing the filter's robustness and
helping to maintain the flatness of the pleated media and the balance of pleat
spacing.
M-DP filter paper is a special mixture composed of non-woven fabrics and
synthetic fibers, with a fluffy structure, large dust holding capacity and low
initial resistance. The filter material is tightly bonded with a layer of
expanded wire mesh, and is processed into filter material pleats of equal and
high spacing through a special process, allowing the air to pass through freely
and evenly, so that the dust can be evenly adsorbed on the entire filter
material, so as to achieve higher dust holding capacity. The expanded wire mesh
strengthens the strength of the filter media pleats, and effectively reduces
the vibration of the filter media pleats during use, thereby reducing secondary
pollution.
M-DP can be divided into three performance grades according to the density of
the pleats: DP30, DP20, DP1
AC Filter Applications
Pre-filtration of air conditioning and ventilation systems to avoid dust
accumulation in the system
Large air compressor pre-filter
Centralized ventilation and air conditioning system and return air filtration
in the clean room to prolong the service life of the high-efficiency filter in
the latter stage
Ventilation system of ordinary industrial workshops to meet general clean air
requirements
Coarse dust filtration system for air conditioners in general buildings
