Plate Heat Exchanger Sheets Forming Presses

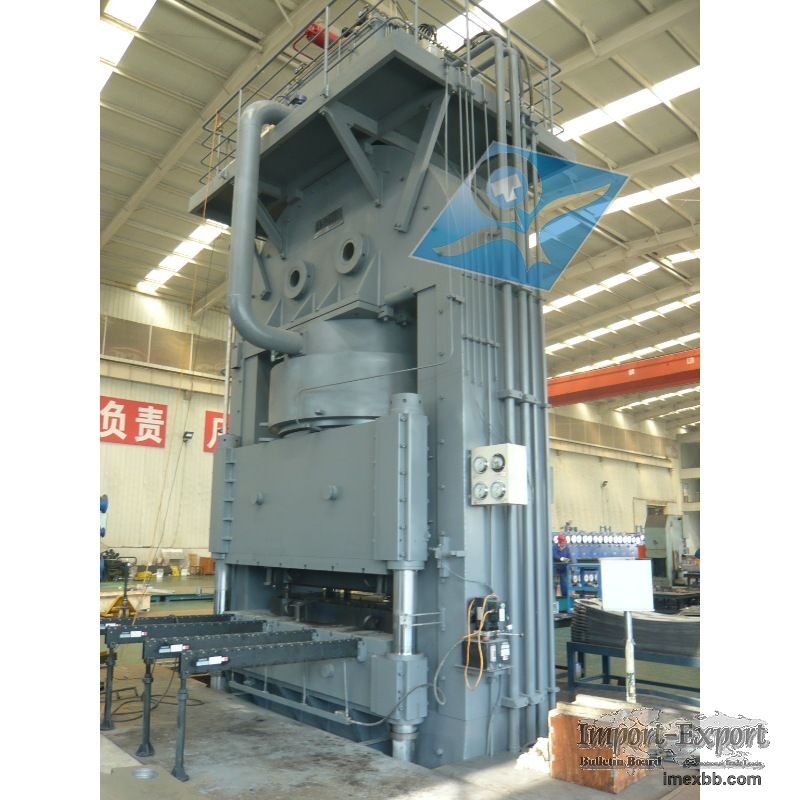

The hydraulic press for PHE plates is primarily used for shaping large sheet
metal casings such as titanium, stainless steel, and heat exchanger
plates. Metal plates forming press can also be utilized for shaping large
cover components. This PHE plates forming machine is designed with a pre-
tensioned wire winding structure, ensuring reliable operation, compact size,
and light weight. Both working pressure and feed speed of steel press machine
are adjustable.
Technical Parameters:
Model Capacity
(MN) Working table
(m) Stroke
(mm) Maximum daylight
(mm) Working
speed
(mm/s) Motor   power
(KW)
TPY30 30 1.5 ×1.0 250 400 0.5—1 17—37
TPY60 60 2.0×1.2 250 400 0.4—0.8 30--55
TPY100 100 2.2×1.3 250 450 0.3—0.6 37—55
TPY200 200 1.5×3.2 250 500 0.3—0.6 75—110
TPY300 300 1.9×3.8 250 550 0.25—0.5 90—150
TPY400 400 2.2×4.5 250 600 0.2—0.4 110—180
PHE plates forming hydraulic press exhibits stable performance, excellent
pressure retention, precise delay timing, and a high level of automation.
Features and advantages of PHE plates forming press:
 Frames and cylinders are steel wire winding structure, which ensure high
loading capacity and longer service time.
 Reliable and easy-replaced structure of ultra-high pressure cylinder and
booster seals.
 Patented prefill valve design speed up oil prefilling and releasing.
 High pressing precision and energy-saving.
 PLC realizes controlling and monitoring of the hydraulic press.
