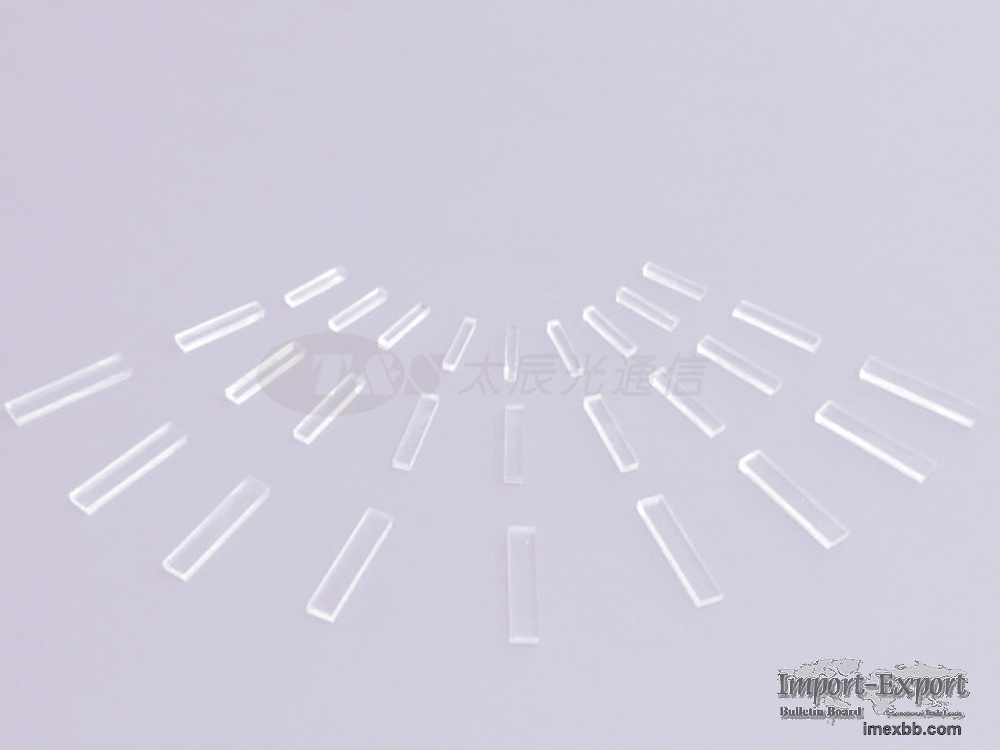

PLC CHIP

PLC CHIP
As a professional plc splitter manufacturer, T&S provides a wide range of
different fiber optic components at reasonable prices. Based on Planar
Lightwave Circuit technologies, our PLC splitter chips can uniformly divide and
guide light in the wavelength ranges from 1260nm to 1650nm. With low insertion
loss (IL), low Polarization Dependent Loss (PDL) and high reliability, T&S PLC
chips have been widely used in FTTx and other optical communication systems.

Features of PLC Chips
Low PDL
Low IL
Wide operating wavelength: 1260-1650nm
Compact size
RoHS compliance

Applications of PLC Chips
Among all plc splitter manufacturers, T&S chip PLC can be applied in Optical
communication networks, Telecom equipment, Three-Network-Integration systems,
including Signal/power distribution, Fiber-To-The-Home (FTTH), Passive Optical
Network (PON).

Specifications of PLC Chip
Parameter Class Unit 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength - nm 1260 -1650
Insertion Loss P dB 3.6 6.7 9.8 13.2 16.2 19.8
PDL P dB 0.15 0.15 0.2 0.25 0.25 0.3
Uniformity P dB 0.5 0.5 0.6 0.8 1.0 1.2
Return Loss - dB - ≥55
Directivity - dB - ≥55
Operating Temperature - ℃ - -40~+85
Storage Temperature - ℃ - -40~+85

The Core Components of PLC Chips

T&S Communications is a professional optic accessories suppliers, we provide
plc splitter 1x32, 1x16 plc splitter and etc. Want to know more? Please contact
us.
