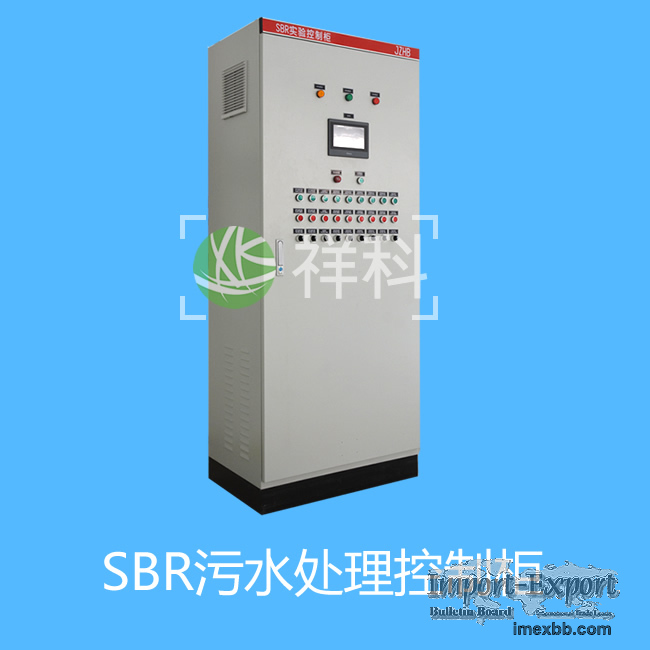

PLC sewage disposal control cabinet

PLC sewage disposal control cabinet

Description:

PLC sewage disposal control cabinet is monitor and control for parameter, pump,
sluice, thick grid, small grid, flush device of runing & failed. Transfer the
signal to CCU control indicator, record, statements,alarm printing etc.

The PLC sewage disposal control cabinet from Xiangke has professional hardware
and software design. Its sewage disposal control system can get better
efficiency & quality.

Components:
Breaker, contactor, thermal relay (Schneider)
Secondary electrial components:
Fuse, current transformer, current transformer, Ammeter, voltmeter, intermedia
relay, indicator, push button, rotary button,connecting terminal.

The main control cabinet fixed decentralized control, and the work data unified
summary to main cabinet.

Applicatons:
Automatic control the bump,electric instruments in sewage disposal control
system. The equipment as follows:
Coagulation-sedimentation Pretreatment system (cathode coagulation lift-pump,
anode sludge pump, cathode Naon metereing pump, cathode mixer).
Biochemical treatment unit (biochemical lift-pump, domestic sewage lifting
pump, inverse sludge pump, Roots blower, Acid metering pump of integrated
regulating tank, PH instruments, BAF back wash-pump)

Cobalt removal unit (Ion exchange lift pump)

Sludge treatment lift pump (anode plate and frame filter press, spiral mud
pump, PAM metering pump)
On-line monitor (COD on-line monitor, samplimg self-suction pump.

Minimum Order: 1 sets
