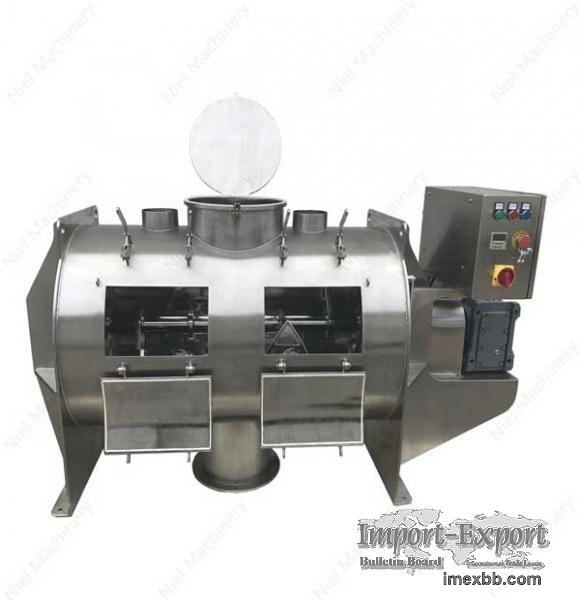

Plough Shear Mixer Machine

The plough shear mixer machine is a new type of high-efficiency powder mixing
equipment. It can be divided into stainless steel coulter mixer and carbon
steel coulter mixer according to the material. It can be divided into
horizontal coulter mixer and multi-purpose coulter according to the structure
type. Mixer, etc.

Product Description of Plough Shear Mixer Machine
The ploughshare in the ploughshare mixer machine rotates with the main shaft to
make the material move along the radial direction of the cylinder arm. At the
same time, the radial material flows along the flying knife group along the
line, and is scattered by the high-speed rotating flying knife, continuously
changing and compounding. The mixing is achieved in a short time.

Structural Characteristics of Plough Shear Mixer Machine
The ploughshare mixer machine is generally cylindrical, horizontally driven,
and has a local mixing slurry in the cylinder.

There are roughly four parts that affect the movement of materials.

One is the shape of the equipment, and the horizontal shape is cylindrical.

The second is the coulter, which is shaped like a plow. It is fixed on the
horizontal transmission shaft by the bracket and rotates along the wall, so
that the material can be used for both diffusion and friction sharing. At the
beginning of material mixing, the coulter rotates, continuously updating the
material surface, and at the same time increasing the activity of the
particles, which is a typical diffusion mixing. At the same time, the particles
rubbed against each other and had the effect of share mixing. The coulters are
radially distributed on the horizontal drive shaft. The coulters have a certain
angle between them. The movement does not insert the powder at the same time,
which greatly reduces the resistance in the powder. One of the outstanding
features of the coulter mixer is the low energy consumption of the mixing.

The third is a flying knife, which consists of three simple blades, similar to
the fan blades of an electric fan. There are multi-layered, pagoda-like, placed
under the side of the mixer wall, rotating speed of 1450 ~ 1900r / min. The
role of the flying knife is to cause a strong convective movement of the
material in the axial direction. The number of flying knives depends on the
scope of their action.

The fourth is the injector, its position, spray direction and the ability to
atomize silicone oil affect the dispersion of silicone oil. For example, when
silicone oil is sprayed near the flying knife, its initial dispersion is
through material convection; silicone oil is sprayed to the opposite side of
the flying knife, and its initial dispersion is caused by severe frictional
sharing and diffusion between the material particles. The two dispersion
effects are clearly different.

Application of Plough Shear Mixer Machine
Food

Chemical industry

Coating

Medicine

Fee , d

Fuel

Metallurgy, mine

Main Features of Plough Shear Mixer Machine
(1)It is in high speed for cutting, crushing, blending the materials

(2)It is with attractive appearance under advance powder handling and
processing technology, there is smaller gap between the ploughshare and chamber

(3)Main shaft seal With PETP and air-purged, double seal

(4)It can be added with heating or cooling jacket device if necessary

(5)Full stainless steel construct except bearing parts, very elegant and
generous
Technical Data of Ploughshare Mixer Machine
Technical Data
Model NLD-200L NLD-300L NLD-500L NLD-1000L NLD-
1500L NLD-2000L NLD-3000L
Effective volume 200L 300L 500L 1000L 1500L 2000L 3000L
Fully volume 220L 325L 545L 1090L 1630L 2160L 3260L
Turning speed 53RPM 53RPM 45RPM 45RPM 39RPM 39RPM 39RPM
Total weight 450KG 650KG 980KG 1300KG 1600KG 2200KG 2600KG
Total power 4KW 5.5KW 7.5KW 11KW 15KW 18.5KW 22KW
Length 1800MM 1900MM 2050MM 2500MM 2950MM 3330MM 3350MM
Width 900MM 1000MM 1050MM 1200MM 1350MM 1500MM 1880MM
Height 1110MM 1200MM 1250MM 1350MM 1400MM 1650MM 1950MM
Power supply 3P AC208-415V 50/60HZ


Shanghai Niel Machinery Manufacturing Co., Ltd. is a professional plough shear
mixer manufacturers, we provide high efficiency cyclone powder dust collector,
powder handling cabinet, powder handling equipment and etc. The company
specializes in the ploughshare mixer design. Want to konw more? Please contact
us.

Minimum Order: 1 sets
