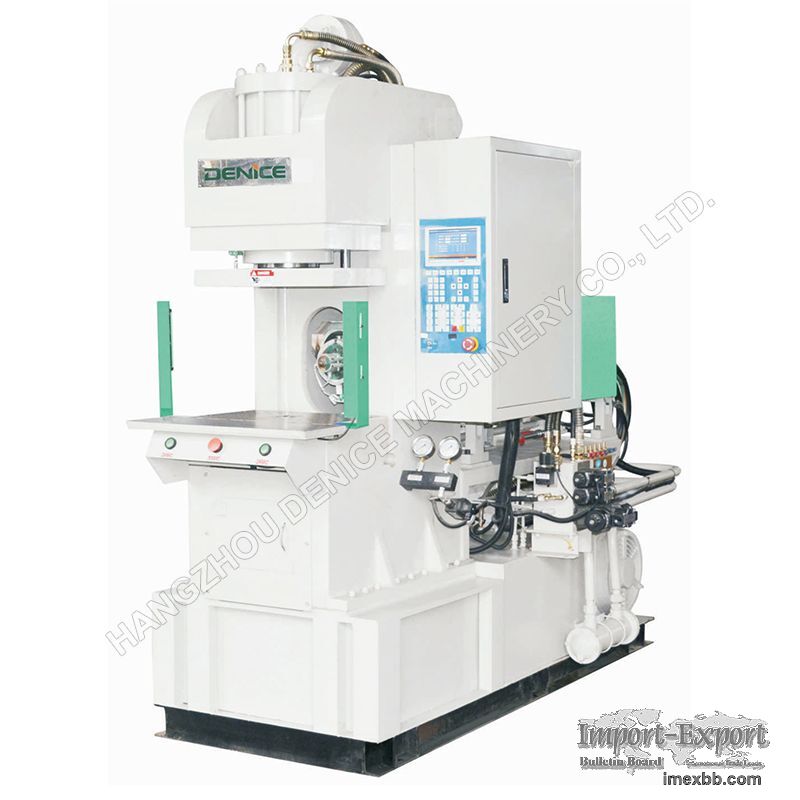

plug making machine DC-450

plug making machine DC-450

 * Vertical clamping, horizontal injection, ease to put and take out items.
· * No column, three sides open, tending to produce long plastic products.
· * Completely model of the machine, in order to increase production
efficiency double slide table (DC-DS) or rotary table（DC-R）series can be
selected. We are injection molding machine manufacturers.

Specification
Model           Unit DC-450
(Injection Unit) Screw diameter mm Ф32 Ф36 Ф40
Maximum injection  pressure Kg/cm2 1531 1210 980
Theoretical shot volume cm3 105 132 163
Maximum shot weight g/Oz 97(3.4) 122（4.3） 151（5.3）
Injection rate cm3/sec 66 84 104
( Clamping      Unit ) Clamping force ton 45
Minimum mold thickness mm 175（Can be customized according to
customer requirements）
Opening stroke mm 200
Open daylight mm 375（As required）
Nozzle Center Height mm 150±20
Nozzle Center Distance mm 75
Ejector force T 1.1
Ejector stroke mm 88
(Others) Pump motor power Kw 7.5
Hydraulic system pressure Kg/cm2 140
Barrel heating power Kw 4.75
Total wattage Kw 12.25
Oiltank capacity L 184
Machine weight  (approx.)     T 3.2
Machine dimensions(approx.) m 2.2×0.9× 2.1
