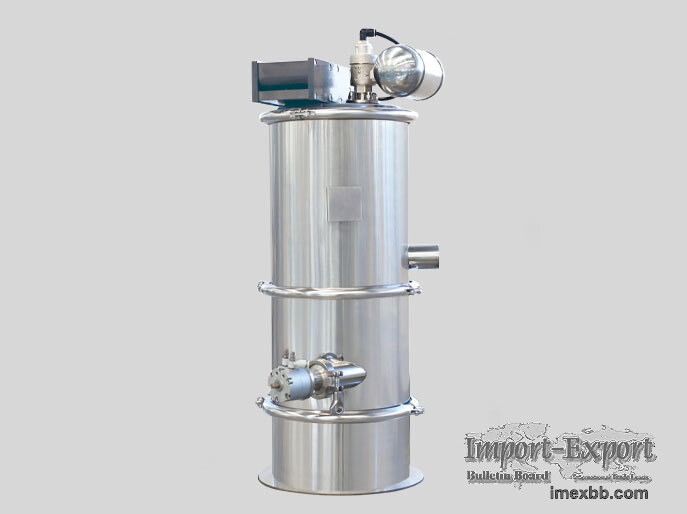

Pneumatic Vacuum Feeder

The Pneumatic Vacuum Feeder can remove material static, transmit the power no-
leakage, is beneficial for the environment cleaning, resolve the power
delaminate problem completely, has programmable automatic control, easy and
convenient for operator. Low cost, low noise, no vibration, the running cost is
low, easy for installation, unloading and cleaning. Main parts of the Pneumatic
Vacuum Feeder adopt the foreign famous brand, applied to the feeding and
transmitting of the pharmaceutic machine, fully meet with GMP requirements.

Specification of Pneumatic Vacuum Feeder

Model ZKSS-150 ZKSS-300 ZKSS-700
Max feeding ability (kg/h) 150 300 700
Compressed air pressure 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa
Max air Exhaustion 180Liter/m 360Liter/m 720Liter/m
Max loading height 10m 10m 12m
Max vacuum 92kpa 92kpa 92kpa
Idle load noise dB (A) <60dB(A) <60d8(A) <65dB(A)
Size L×W×H (mm） φ170×580 φ245×720 φ360×850
Weight (kg) 12 14.5 16.5

Liaoning Tianyi Machinery Co, Ltd is a key pharmaceutical machinery company
converted from an old industrial base in Northeast China approved by the state;
also, it is a member of the China Association For Pharmaceutical Equipment
(CAPE).

There are many pharmaceutical machine manufacturers, but we are one of the best
choices for you.
