Polyimide Silicone Tape



Polyimide silicone tape, also called as kapton tape, is based on polyimide
film, coated with high-performance silicone pressure-sensitive adhesive on one
side with single-sided fluorine release liner or not. High-precision coating
reaches at 0.025mm, no scratches, wire drawing and other phenomena, good
shearability, easy punching die-cutting processing, with excellent high
temperature resistance and solvent resistance.

Hopelight Polyimide Silicone Tape Types

Double Sided Kapton Tape
Buy Heat Resistant Tapes
ESD Kapton Tape
Buy Heat Resistant Tapes
Black Kapton Tape
Buy Heat Resistant Tapes
Advantages Of Polyimide Silicone Tape
Customized low adhesion, medium adhesion, strong adhesion according to customer
requirements., the stock is sufficient. Quality assurance. Quick delivery.

Variety specifications for your choice.

High-temperature resistance and heat insulation protection, Polyimide silicone
tape not only plays a role in heat insulation protection of various electronic
and electrical equipment but also can be applied with wire wrapping, etc.

Environmental protection, no odor, insulation withstand voltage.

Easy peeling, strong adhesion, no residue left on the masked surface after
tearing off.

Polyimide silicone tape has a wide range of applications, protect the gold
finger part of the circuit board. At the same time, it is also used in motor
insulation and the fixing of positive and negative poles of lithium batteries.

Parameters Of Polyimide Silicone Tape
Backing Polyimide film
Coefficient of the tape Silicone
Color amber/black
Film thickness (mm) 0.025 0.025 0.05 0.05 0.075 0.125 0.125
0.15
Total thickness (mm) 0.05 0.06 0.08 0.1 0.12 0.15 0.18
0.2
Fluorine release liner thickness (mm) 0.05 0.05 0.075 0.075 0.075
0.075 0.075 0.075
Length(m) 33m/max 750m
Tensile strength (KG/25mm) 20 14 45 45 45 45
45 45
Elongation % 60 65 65 65 65 65 65 65
Breakdown strength ≥150N/25mm
Withstand Voltage KV 6 6 10 10 10 10 10
15
Adhesion (N/25mm ) 5 6 6.5 6.5 5.5 5.5 6
6
Temperature Resistance℃ 280℃ 30mins


Hopelight Electrical is a professional heat resistant tape manufacturer, we
provide Polyimide Tape, Polyester Tape, Copper Tape, Teflon Adhesive Tape,
Glass Cloth Tape, polyimide film tape and etc. Want to know more? Please
contact us.

Minimum Order: 1 sets

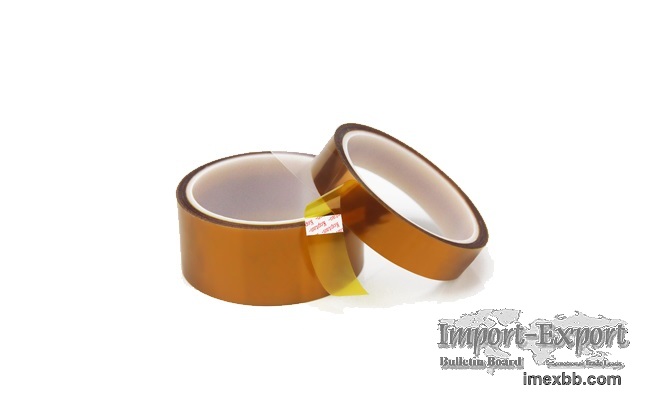

Polyimide Silicone Tape
