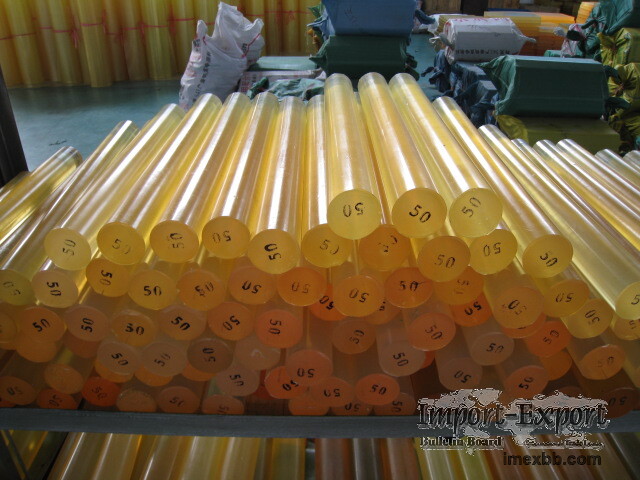

Polyurethane Rod, PU Rod

Description: the polyurethane elastomeric is a new material of polymer
synthetic between rubber and plastic. It has both high strength of plastic and
high elasticity of rubber. Its characteristics are: 1, a wide range of
hardness. It still has rubber elongation and resilience at high hardness. The
polyurethane elastomeric has a hardness range of Shore A10-D80. 2. high
strength. At rubber hardness, the tensile strength, tear strength and load
carrying capacity are much higher than general rubber material. At high
hardness, its impact strength and flexural strength are much higher than
plastic material. 3, wear-resistant. Its wear resistance is very outstanding,
generally in the range of 0.01-0.10cm3/1.61km, about 3-5 times than rubber
material. 4, oil resistant. The polyurethane elastomeric is a highly polar
polymer compound which has low affinity with non-polar mineral oil and is
hardly eroded in fuel oil and mechanical oil. 5, good resistance to oxygen and
ozone. 6, excellent vibration absorption performance, can do damping and
buffering. In the mold manufacturing industry, it replaces rubber and
springs.7, has good low temperature performance. 8, radiation resistance.
Polyurethane is highly resistant to high energy radiation and has satisfactory
performance at 10-10 deg radiation dose. 9, with good machining performance.



The polyurethane rod, pu rod are made by full sets mould cast with high quality
polyester or polyether. It is very good performance of chemic erode resistant,
impregnant resistant, ozone resistant, radiation resistant, aging resistant,
hydrolyze resistant, and high tensile strength, tear resistant, high impact
resistant, high bend strength and low compression set etc. The abrasion
resistant is 5 multiple more than pure natural rubber, and the oil resistant is
3-5 multiple more than NBR rubber, and have high elasticity 65% with prominent
compression resistant at high temperature. Wider revise hardness range of 75-
95shore A, very good viscidity with metal material, it is a new macromolecule
material with fast evolutive now. Apply to military, mine, oil field, chemical,
printing, punch, paper making, shoe making, spin, auto industrial etc.



Specifications:

materia , l: virgin CPU or TPU

quality: polyether or polyester

color: clear yellow, red, black, brown, blue, green etc.

surface: smooth

tensile strength: 25-50Mpa

elasticity impact: >25%

hardness: 75-95shore A

elongation: 400%-600%

density: 1.15-1.25g/cm3

tear strength: 35-155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C

diameter: Ø10-300mm

length: 300 or 500mm

standard size:

Ø10mm x 300/500mm

Ø15mm x 300/500mm

Ø20mm x 300/500mm

Ø25mm x 300/500mm

Ø30mm x 300/500mm

Ø35mm x 300/500mm

Ø40mm x 300/500mm

Ø45mm x 300/500mm

Ø50mm x 300/500mm

Ø55mm x 300/500mm

Ø60mm x 300/500mm

Ø65mm x 300/500mm

Ø70mm x 300/500mm

Ø75mm x 300/500mm

Ø80mm x 300/500mm

Ø85mm x 300/500mm

Ø90mm x 300/500mm

Ø95mm x 300/500mm

Ø100mm x 300/500mm

Ø110mm x 300/500mm

Ø120mm x 300/500mm

Ø130mm x 300/500mm

Ø140mm x 300/500mm

Ø150mm x 300/500mm

Ø160mm x 300/500mm

Ø170mm x 300/500mm

Ø180mm x 300/500mm

Ø190mm x 300/500mm

Ø200mm x 300/500mm

Ø220mm x 300/500mm

Ø250mm x 300/500mm

Ø280mm x 300/500mm

Ø300mm x 300/500mm

OEM & customized size are agreed

packing in pallets or crates

***when you enquiry, pls confirm the material, color, hardness, size and
quantity***

Minimum Order: 200 kilograms
