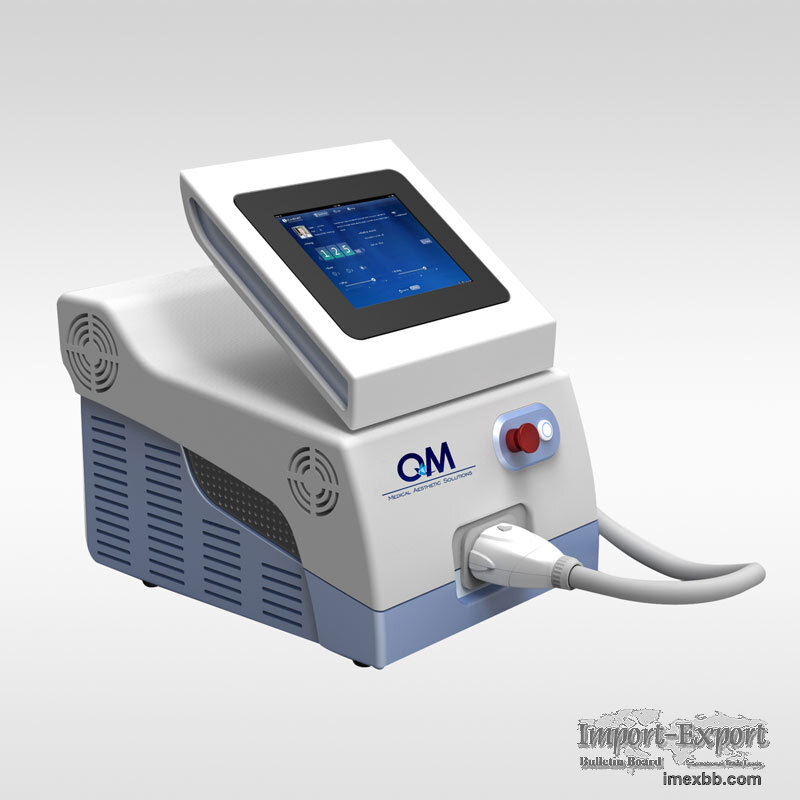

Portable IPL Hair Removal Machine

QM-100
Portable IPL Hair Removal Machine
Applications
1. Hair removal.
2. Skin rejuvenation,
3. Pigments removal
4. Acnes Removal
5. Vascular Removal
6. Wrinkle removal.

Working Principle
Intense Pulse Light(“IPL”) used broad spectrum of white light and with
filters to marrow the spectrum to target specfic chromophores and structures.
IPL is a non-invasive skin treatment that emits powerful bursts of light energy
to treat unwanted hair, sun damaged skin, and wrinkles, etc. without damaging
the surface of your skin, IPL systems use flash xenon lamps to emit micro
pulses of light across a broad band of visible wavelengths. IPL work by using
particular wavelengths of light that is called by melanin which colors the hair
and brown skin and black. Since melanin absorbs light to be warm or hot, that
the production of cells called melanocytes and melanin are denatured more
produce more melanin. By using gentle pulses of light momentarily to create
heat, IPL can permanently disable hair follicles, preventing hair follicles`
future growth. The melanin in the hair (which gives it its colour) absorbs the
light, which is then converted into heat. This heat is transferred to the
growth cells surrounding the root of the hair, disabling them. By the IPL,
pigments are Shattered and eliminated out of body via metabolism. At the same
time,IPL also helps increase collagen production, which rejuvenates the skin
leading to a more youthful, radiant, bright and few fine wrinkle skin. The
light with long wavelength can pass through epidermis to the hair follicles
deep underneath the skin. At the targeted area, IPL occurs heating to destroy
follicles and hair structures leading to permanent hair removal.

Specialty of QM-100
** Latest Innovative design ! Beautiful, Elegant and Compact!

**The Operation Screen is adjustable, which can be laid down as a PC, Unique
and Save packing size

** 10.4 inch luxury TFT touch screen, Apple Product level feeling!

**Top-level Spare parts adopted, gurantee, it’s golden quality and long-
lasting lifetime!
Technical Specifications
Item IPL
Model IPL QM-100
IPL Peak Power 1400W
Wavelength (Spectrum) 430/430/640—1200nm
Energy Density (Fluence) 10-60J/cm2
Spot Size 8*40mm
Pulse Repetition Rate 0.5-2Hz
Pulse Duration 1-50ms
Pulses 1-6
Cooling Continuous Crystal contact cooling(-5℃~1℃)
+Air cooling
+Closed water circulation cooling
Stand-by Working 20 hours
Display 8.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz

Minimum Order: 1 sets
