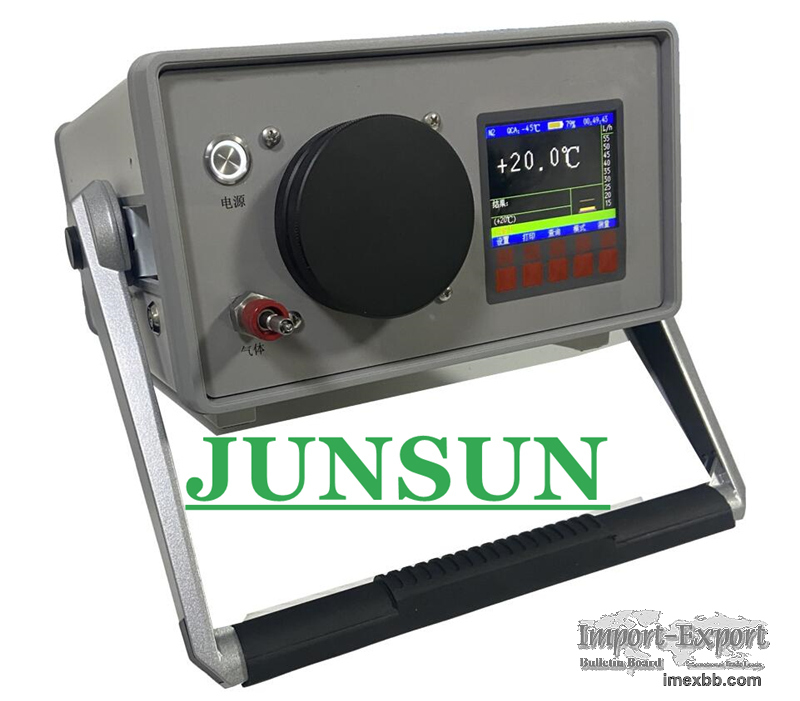

Portable Type High Precision Chilled Mirror Hygrometer Dew Point Analyzer

JDP8000-L Portable High Accuracy Chilled Mirror Dew Point Meter is specially
designed for testing the humidity in gases, such as air, dry gas, compressed
gas, natural gas, liquefied gas, refrigerant.

JDP8000-L is widely used for air separation gas analysis, power switch, metal
smelting, petrochemical processes, natural gas processing, electronics
manufacturing, textiles, Medicine, food, aerospace and other fields.

High accuracy, strong reliability, fast measurement and no drift.

Key Features:
⚫ Support a variety of gas humidity measurement (SF6, air, nitrogen, oxygen,
argon, electronic gas, natural gas, etc.);
⚫ Based on the principle of cold mirror dew point, it can directly and
accurately reflect the actual humidity situation without lag;
⚫ Four-stage semiconductor refrigeration + cold pipe heat dissipation, the
cooling capacity is better than 95℃, and the lower limit of measurement is
low;
⚫ High precision: ≤0.2℃; Repeatability: ≤0.1℃;
⚫ High sensitivity, fast measurement speed and good stability;
⚫ Built-in condensation accelerator (QCA), which can ensure fast measurement
of extra dry gas stable dew point;
⚫ Dew point temperature ℃, PPMv, gas flow, ambient temperature, ambient
humidity Degree multi-unit display;
⚫ Color large-screen LCD display, full curve tracking;
⚫ Visually display the frost condensation progress, which is convenient for
judging the test progress;
⚫ The mirror surface is automatically checked. When the light energy is
insufficient or too strong, the light energy automatic adjustment;
⚫ Automatic alarm prompt function for fault information;
⚫ Strong anti-pollution and anti-interference ability;
⚫ Simple operation and easy to carry;
⚫ Support Chinese and English interface display;
⚫ Support measurement record storage, query and printing;
⚫ Built-in high-capacity lithium battery power supply, can work continuously
for more than 8 hours, easy to use;
⚫ Traceable certificate from China Metrology Institute.

Minimum Order: 1 sets
