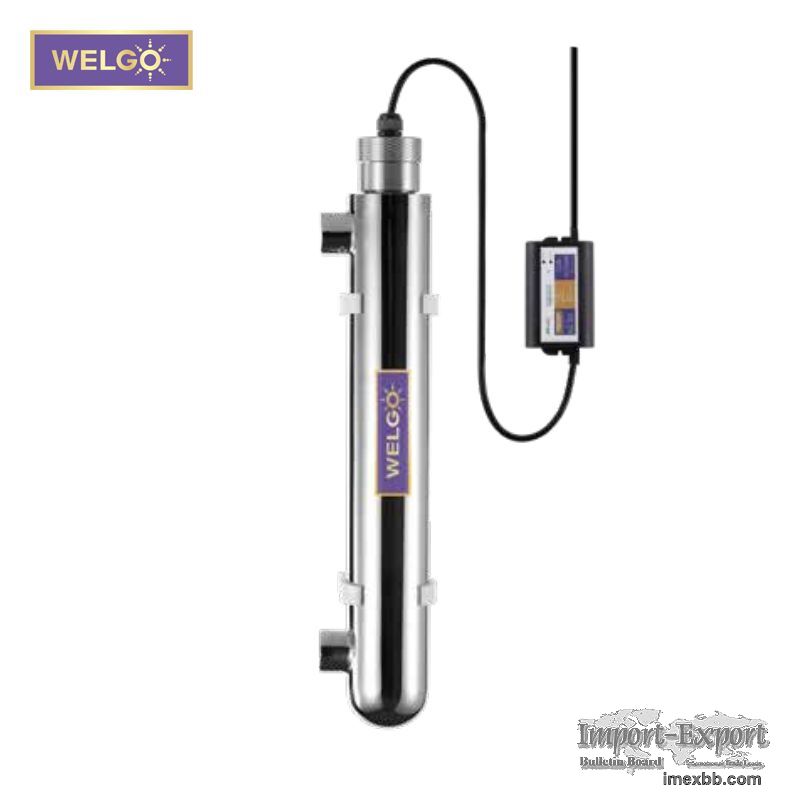

Portable UV Water Sterilizer 10 GPMWGUV-F02

The Portable UV Water Sterilizer 10 GPM is engineered for mobile, temporary, or
decentralized water treatment scenarios where stable, chemical-free
disinfection is required. As a complementary option to a Residential UV Water
Sterilizer, it features a compact structure, lightweight design, and high-
output UV lamp technology, ensuring safe, pathogen-free water for rural wells,
field operations, construction sites, emergency water stations, and mobile
treatment systems.
For large-volume engineering procurement, this series combines portability with
industrial-grade reliability—making it ideal for integrators, OEM/ODM brands,
and project contractors seeking flexible yet durable UV systems.
Specification
Model WGUV-F02
Inlet/Outlet Size G1/2" outer thread
A/B/C Size unit/mm 354/51/67
Lamp Model GPH287T5L/4P
Quartz Sleeve Φ233301.5mm, closed end
Lamp design operation Life 9000-10000Hrs
Volts 230VAC,50-60HZ
Alarm LED
Chamber Material SS304/SS316
Operating Pressure 0-0.7MPa
Operating Temperature 5~40℃
