Post Tensioning Wedge

Product Description

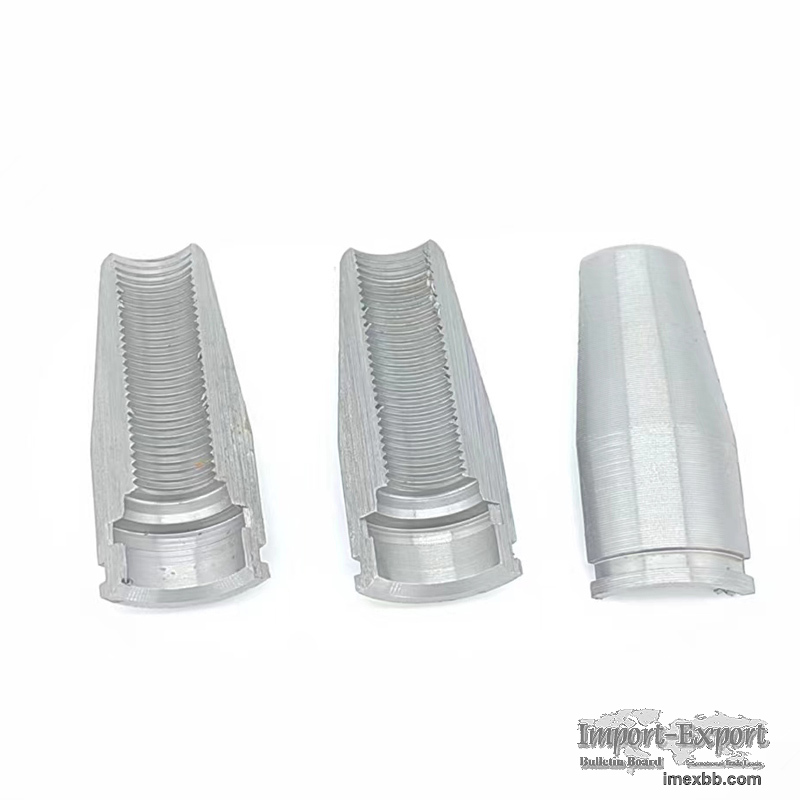

The RuiYi post-tensioning wedge is a crucial component used in prestressed
concrete structures. By applying prestressing force on the concrete elements,
it significantly enhances the load-bearing capacity and durability of the
structure.
Working Principle of post tensioning wedge
By utilizing the taper of the anchor ring and the prestressed anchor plate, a
significant clamping force is generated on the steel strand, creating a strong
gripping force. The clamping-type anchor system generally utilizes the
frictional resistance between the prestressed anchor plate and the steel strand
to secure the steel strand. The porous prestressed anchor plate system, also
known as a cluster anchor system, consists of porous prestressed anchor plates,
anchor bearing plates (also known as cast iron bellows, anchor seats), helical
bars, or steel mesh sheets. This type of anchor is implemented on a multi-
porous anchor plate, with each conical hole holding a pair of prestressed
anchor plates to clamp a steel strand.
