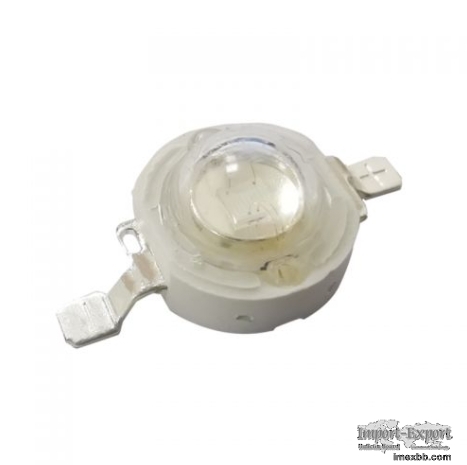

Power LEDs 3W UV Chip 405nm

Power LEDs 3W UV Chip 405nm
3W Power LEDs UVA Diode 365nm, 385nm, 395nm, 405nm

Moonleds Power LED UV series features extremely high radiation intensity,
industry-standard package, to enable cost effective, high efficiency lighting
designs.
Moon UVA LEDs is offered in 365nm, 385nm, 395nm, 405nm with 60 degree and 120
degree beam angle options. It uses for sterilization, curing and printing
field, as well as plant growth in specified stage.

Features
 • Robust and industry standard package;
 • Red copper base with 99.99% gold wire, Epileds chip;
 • Full UV wavelength options: 365nm, 385nm, 395nm, 405nm;
 • Accurate peak wavelength and excellent color uniformity;
 • Superior mW/W enables outstanding efficacy in end application:
  Sterilization, Nail-Caring, Ink Curing, Ink Sprayer, Printing, Painting,
Plant growth, Mosquito trap

UVA High Power LEDs specification:
Color Wavelength
(nm) VF
(V) IF
(mA) Optical Power
(mW) Part Number
UVA 365-370 3.2-3.6 700 1000-1200 MN-HPUV36531000
UVA 385-390 3.2-3.6 700 1000-1200 MN-HPUV38531000
UVA 395-400 3.2-3.6 700 1000-1200 MN-HPUV39531000
UVA 405-410 3.2-3.6 700 1000-1200 MN-HPUV40531000
UVA 420-425 3.2-3.6 700 1000-1200 MN-HPUV42031000
