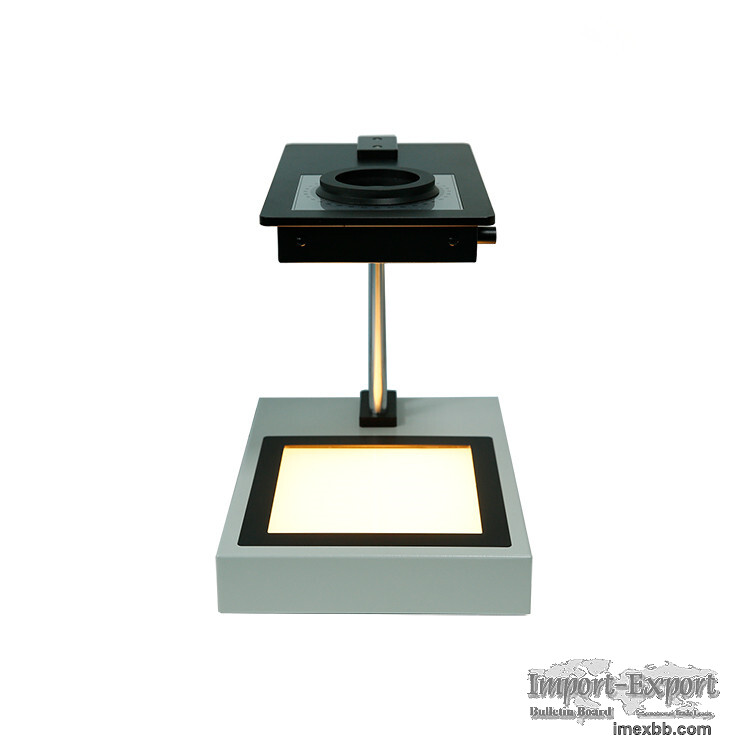

Precise quantative Polariscope lab-use to measure Glass Stress Value

Polariscope detecting stress in glass and Quartz products
(Ref. PSV-413)

Function
1.Observe stress distribution in transparent plastic, glass products and
optical crystals
2.Measure retardation caused by internal stress in glass and optical crystals

Detecting object
1. transparent glass products with complex construction.
such as : penicillin bottle, ampoule , mobile phone cover, light tube, light
bulb,solar glass ,automobile glass,sapphire, glass container , glass handicraft
2. transparent plastic samples
plastic bottle , cosmetic bottle , beverage bottle, contact lenses, plastic
tray， plastic film
3. optical crystals such as quartz , SiC, calcium fluoride

Detecting methods
Sensitive Color Method and Senarmont Method

Specification
Model PSV-413
Size : W280×D385×H390mm
Measuring range : 0-280nm
Weight : 11Kg
Viewing field : W200×D200mm
Measure height : max240mm
Light Source : Warm white LED light 10W
Power : DC 12V(with a AC/ DC adapter)

Minimum Order: 1 pieces
