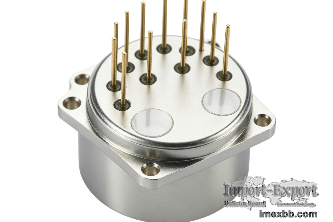

Precision Accelerometer JB-1

Quartz flexible accelerometer series is a high-precision inertial
navigation class accelerometer with excellent long-term stability,
repeatability, start-up performance, environmental adaptability and
high reliability. It can be used for both static and dynamic testing,
and it is also a standard vibration sensor and inclination sensor.
The output current of the product has a linear relationship with the
force or acceleration received. Users can select the appropriate
sampling resistance through calculation to achieve high precision
output. And according to user needs built-in temperature sensor, used
to offset value and scale factor compensation, reduce the impact of
environmental temperature.
Applications: inertial measurement of high-precision inertial
navigation system and vibration isolation test of precision instruments
and equipment in ships and other fields.
Features
1. Excellent turn-on repeatability performance
2. Environmentally rugged
3. Analog output
4. Field adjustable range
5. Three fastener precision mounting flange
6. Internal temperature sensor for thermal compensation（option）
7. For the scale factor we can adjust for you.
For more:https://china-commutator.com.cn/product/accel , erometer-jb1/

Minimum Order: 10 pieces
