Prefabricated Metal Space Frame Truss Roof Barrel Coal Storage Shed System

1. Total construction area:
A material yard span: 410m in length, 145m in projection span and 59450
m2 in projected area;
Mixing yard span: 460m in length, 92m in projection span and 42320m2 in
projection area.
The projected area of the shed is 101770 m2.
2. The structure and features of this project are as follows:

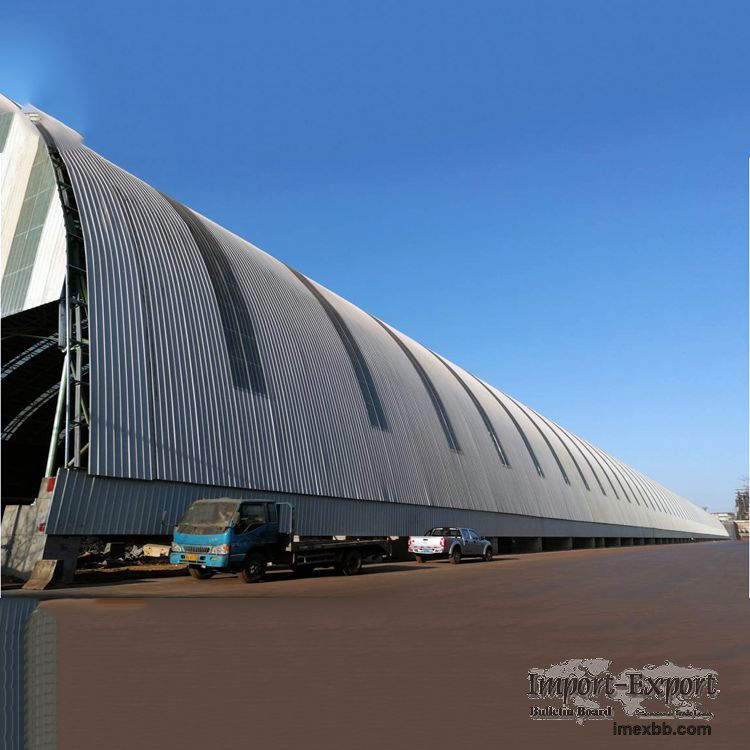

The primary material yard and mixing material yard shed project is a
closed cylindrical reticulated shell shed, which adopts a multi-center
cylindrical surface positive four-corner bolt ball joint reticulated shell
structure, and is closed by a steel structure. The axial spans of the space
frame supports are 145m and 92m, respectively, and are supported on the top of
the concrete stepped column by external chords. The elevations of the space
frame are 29.00m and 48.00m respectively. The length of the space frame is 9m,
the length of the space frame is 4.50m, and the space frame size in the span is
4.00m.
If you have a similar project to be built, please come to consult us, we will
analyze it for you for free！！
website：https://www.cnxzlf.com

Minimum Order: 200 square metres
