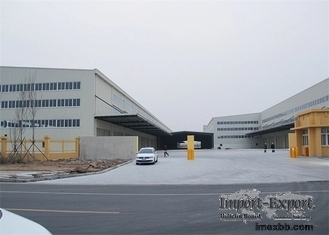

Prefabricated Steel Structure Logistics Park Steel Structure Building

Prefabricated Steel Structure Logistics Park Steel Structure Building



With the development and growth of the logistics industry, steel structure
warehouses are constantly updated. Many traditional warehouse functions are
increasingly unable to meet the rapid development of the logistics industry.
New automated steel structure warehouses are replacing traditional
warehouses, and steel structures have become the main structure of logistics
warehousing.

Steel structure logistics warehouse is an important part of the logistics
industry, this kind of warehouse is a kind of warehouse with a high level of
technology at present. Shelves, lane stackers, warehouse direct working
platforms, automatic access and operation control systems are the main parts
of the warehouse combination. The shelf is made of steel structure. The
outstanding advantage is to realize the reasonable operation of the
warehouse structure, maintain automation and simplify the operation. It uses
computer or bar code technology in management.



Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure
fabrication and construction company for light and heavy steel structure
Design, Manufacture & Installation.

Specification of steel structure material:


Items Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber
Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich
Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature.-50°C~+50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.
