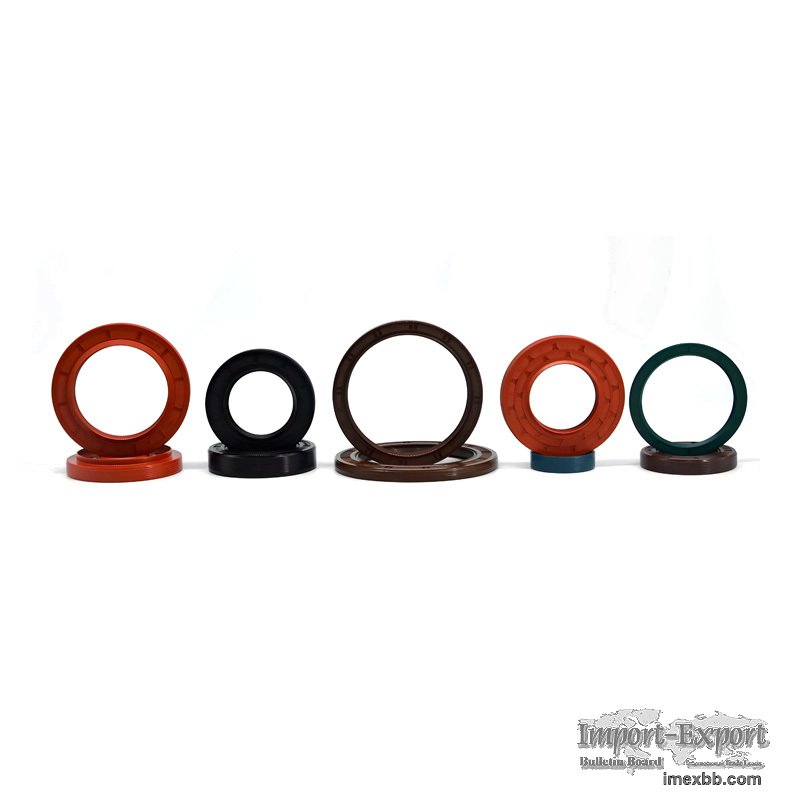

Premium Gearbox Oil Seals with Long Service Life and Reliable Performance

When it comes to maintaining the optimal performance of industrial machinery,
the role of gearbox oil seals cannot be overstated. These small components are
often the unsung heroes, keeping vital lubricants in place while preventing
contaminants from entering. Given their importance, it is crucial to select the
right material for a gearbox oil seal, as the material directly impacts the
seal's effectiveness and longevity. Over the years, I've seen how different
materials perform under various conditions, and in this article, I'll provide a
deep dive into the key materials used for gearbox oil seals and share practical
insights on how to choose the right one for your application.

Understanding the Role of Gearbox Oil Seals

A gearbox oil seal serves two primary functions: to contain the lubricant
inside the gearbox and to keep external elements like dirt, moisture, or
contaminants out. If the seal fails, the gearbox can experience oil leakage,
overheating, increased friction, and ultimately, failure. To perform their
function reliably, oil seals need to withstand high speeds, pressure, and
temperatures without losing their elasticity or strength. So, the material used
for an oil seal must match the specific operating conditions it will be exposed
to.

Key Materials for Gearbox Oil Seals

Over the years, I've worked with various oil seal materials, each offering
unique advantages based on the working environment. Here’s a breakdown of the
most commonly used materials for gearbox oil seals:

Nitrile Rubber (NBR)

Nitrile rubber is one of the most commonly used materials for oil seals, thanks
to its excellent resistance to oil, grease, and fuel. It performs well in
moderate temperatures and pressure conditions, making it a go-to for standard
gearbox applications. However, it is less suited for high-temperature
environments or chemical exposure.

Fluoroelastomer (FKM)

When the operating conditions are more extreme—particularly in high-
temperature environments—fluoroelastomer (FKM) becomes the material of choice.
FKM offers exceptional resistance to heat, oil, and chemicals, making it ideal
for gearboxes operating at elevated temperatures or with aggressive fluids. It
can easily withstand temperatures from -30°C to +250°C, making it versatile
for various industrial applications.

Polytetrafluoroethylene (PTFE)

PTFE is often chosen for its outstanding chemical resistance and low friction
properties. It’s particularly beneficial for gearboxes that require tight
seals in highly corrosive environments or with specialized lubricants. PTFE
seals are also very effective in extreme temperatures, operating smoothly up to
250°C. The material’s low friction helps reduce wear and energy loss,
providing a longer lifespan for machinery.

Silicone Rubber (VMQ)

Silicone rubber is favored for its high-temperature stability, flexibility, and
resistance to aging, making it suitable for gearboxes in environments where
high temperatures are a concern. However, it’s not as resistant to oils and
fuels as other materials like NBR or FKM. Silicone is more commonly used in
less demanding applications or where sealing is required for a broader range of
temperatures.

Polyurethane (PU)

Polyurethane offers excellent wear resistance and is perfect for high-load,
high-speed applications. It’s used in gearboxes where the seal needs to handle
heavy pressure and high-frequency movements. Polyurethane oil seals have
excellent abrasion resistance, which makes them ideal for long-lasting
performance in demanding environments.

Selecting the Right Material: What to Consider

Choosing the right material for a gearbox oil seal is not just about picking
the most durable option—it’s about selecting the one that matches the
specific needs of your application. Here are a few key factors to consider when
making this decision:

Temperature: If the gearbox operates in a high-temperature environment,
materials like FKM or PTFE are best. These materials maintain their elasticity
and sealing properties even under extreme heat.

Lubricant Compatibility: Different lubricants can affect the performance of
certain seal materials. For example, NBR works well with petroleum-based oils,
while FKM is better suited for synthetic oils and chemical applications.

Pressure and Speed: In high-pressure or high-speed conditions, materials like
polyurethane or PTFE are ideal due to their excellent resistance to mechanical
stress and wear.

Environmental Conditions: If the gearbox is exposed to corrosive elements or
harsh chemicals, PTFE or FKM will offer better protection, as these materials
are highly resistant to chemical attack.

How NQKSF Oil Seals Stand Out

As someone who has worked in the sealing industry for over 30 years, I’ve seen
first-hand how essential it is to have a reliable supplier. NQKSF stands out
for its comprehensive approach to sealing solutions. Here’s why many in the
industry turn to NQKSF for their oil seal needs:

Extensive Inventory and Fast Delivery

NQKSF stocks over 10,000 different standard seal sizes, ensuring that you can
get the parts you need quickly, without having to wait for custom production.
This is especially important for urgent replacements.

Tailored Seal Solutions

For unique operational environments, NQKSF offers custom seal solutions that
are tailored to your specific requirements. From material selection to design
and testing, NQKSF ensures that your seals are perfectly matched to the working
conditions of your machinery.

Expertise in Sealing Systems

With more than 30 years of experience, NQKSF’s technical team works closely
with customers to optimize sealing systems, improve performance, reduce
maintenance costs, and extend the life of the equipment. This kind of expertise
can make all the difference in the long-term reliability of your gearboxes.

Choosing the right material for gearbox oil seals isn’t just about ensuring
the seal does its job—it’s about enhancing the overall performance and
longevity of the gearbox. By selecting a material that can withstand the
specific demands of your operational environment, you can prevent costly
downtime, extend service life, and reduce maintenance costs.

Minimum Order: 1000 pieces
