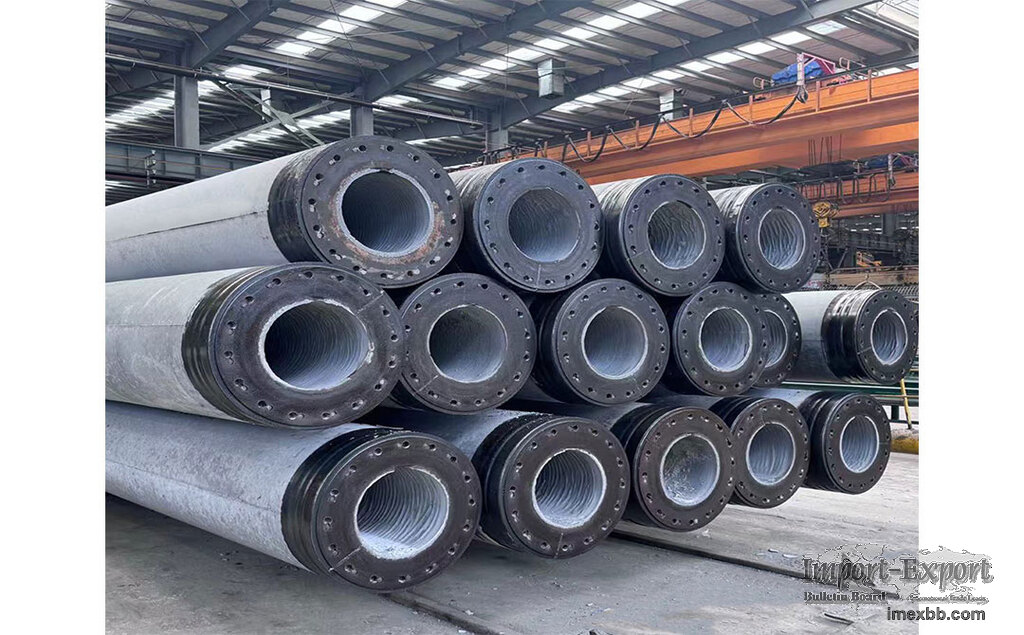

Prestressed Ultra-High-strength Concerte Pipe Pile

The Pretensioned Prestressed High Strength Concrete Pipe Pile(PHC Pile)is a
prestressed concrete component with an annular cross-section, manufactured
using prestressing and centrifugal processes. The concrete has a cube
compressive strength of 80 MPa and the pile's cross-sectional diameter ranges
from400 mm to 1400 mm. The prestressed reinforcement consists of Prestressed
Concrete Steel Bars (Pc bars).

PHC piles are categorized into four types-Type A, AB, B, and C-based on
effective prestress. These piles can be installed using hammering, static
pressing, or insertion methods, ensuring rapid, convenient, and flexible
construction. The construction process does not produce slurry, waste, or other
pollutants. PHC pile connections can be made through welding or mechanical
ioints, both of which are straightforward and reliable. The mechanical
performance of the connections meets or exceeds that of the pile body itself.
