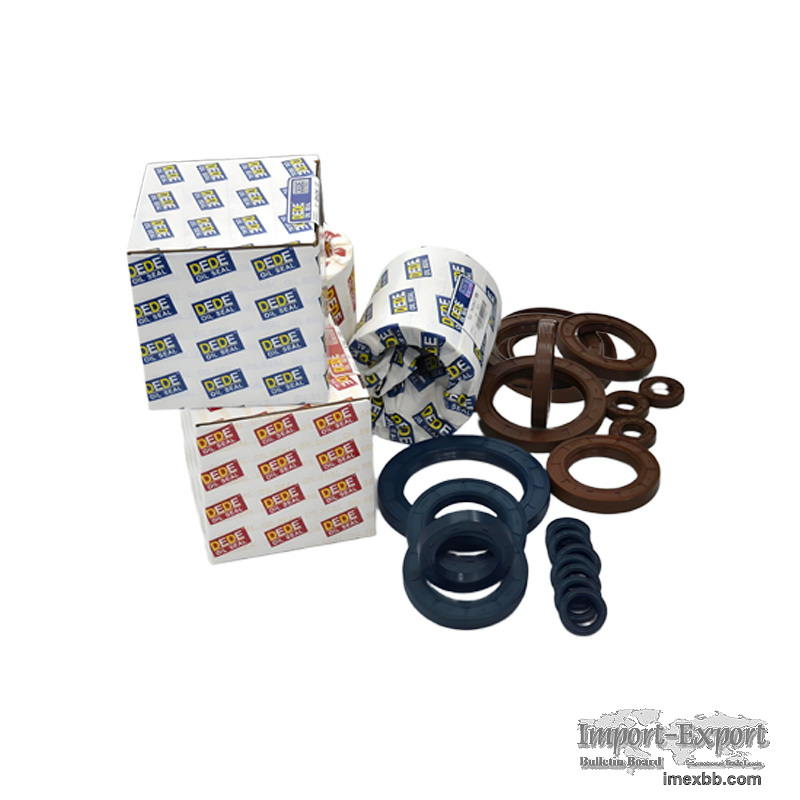

Professional Supplier of Oil Seals for Engines Gearboxes and Hydraulics

In the world of machinery, the oil seal is one of those components that
often gets overlooked until it fails. Many people see it as a small,
inexpensive ring, but when it starts leaking, the entire machine can grind
to a halt. Over the past decade, I’ve seen countless cases where customers
blamed the seal itself, but in reality, the root cause often lies elsewhere.
Below, I’ll share what I’ve learned from years of field service and
cooperation with manufacturers, repair shops, and distributors.

Installation – The Most Common Source of Trouble

More than half of the oil seal failures I’ve encountered were caused by
improper installation.

It may sound simple—press the seal in and you’re done—but every small
detail matters: the shaft finish, the installation angle, the lubrication
before fitting, and even how much force is used.

Here are a few common mistakes I’ve seen repeatedly:

Damaged or worn shaft surface: A shaft that has grooves or scoring will ruin
a new seal within days. Some operators skip re-polishing the surface and
just install the new seal, which never ends well.

Incorrect installation force: Hitting the seal with a hammer or inserting it
unevenly can distort the sealing lip or knock the spring loose.

No pre-lubrication: The lip should always have a thin oil film before
installation. Without it, the initial run causes frictional heat that burns
the rubber.

Wrong direction: It happens more often than you think—seals installed
backward. When the open side faces away from the oil, leakage is
unavoidable.

Small errors in assembly can undo even the best-quality seals.

Material Selection – The Hidden Factor

Many users believe all rubber seals are the same. They’re not. Different
working conditions demand different materials. I’ve seen customers use NBR
seals in high-temperature environments where they become brittle in just a
few months.

Here’s a quick guide based on experience:

NBR (Nitrile rubber) works well for general oil resistance but struggles
above 100°C.

FKM (Viton) handles temperatures up to 200°C and resists aggressive fluids;
ideal for engines and gearboxes.

PU (Polyurethane) is tough and wear-resistant, suitable for hydraulic
cylinders.

EPDM is great for aging resistance and coolant, but not for oil contact.

Choosing the right material means understanding your medium, pressure, and
temperature—not just the size.

Environmental and Operating Conditions

Oil seals don’t work in isolation. The surroundings and machine conditions
play a big role in their lifespan.

Dust, mud, temperature shifts, and vibration all accelerate wear.

Take construction or mining machinery as an example: constant exposure to
dust and sand can turn those particles into an abrasive paste that eats away
the rubber lip.

In northern climates, freezing temperatures can harden standard rubber
materials, causing cracks as soon as the machine starts.

Sometimes adding a dust lip or switching to a low-temperature compound can
make a big difference. It’s about anticipating the conditions rather than
just reacting to failure.

Problems That Come from the Machine Itself

I’ve seen machines where seals were replaced multiple times, and every new
one leaked again. The reason? Not the seal.

Common hidden causes include:

Shaft misalignment or excessive runout

Internal pressure spikes

Oil level set too high

Bearing play or mechanical vibration

Continuous overloading that causes shaft deflection

If these issues aren’t fixed, no seal will survive for long. Before blaming
the seal, check the mechanical system around it.

The Distributor’s Perspective

For distributors, leaks translate into customer complaints—and reputation
damage. The two things that matter most are product consistency and
technical support.

Some manufacturers deliver one good batch and one bad batch. That
inconsistency causes endless trouble. A reliable supplier not only provides
consistent quality but also helps customers select the right type for their
machine.

More and more buyers today prefer complete sealing kits—oil seals, O-rings,
and gaskets—because they reduce assembly mismatches and simplify
maintenance.

A distributor who can offer this kind of support will keep customers for the
long term.

Oil seal leakage rarely has a single cause. It’s usually the result of
several small issues combined—poor installation, the wrong material,
environmental stress, or underlying mechanical faults.

The best prevention strategy is a mix of good design, correct selection, and
careful installation.

Regular inspection of the shaft surface, using the right lubricant, and
choosing materials according to the actual working temperature can save both
time and money.
