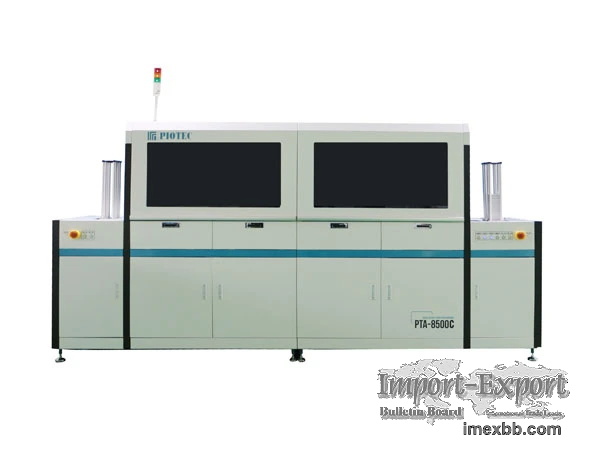

PTA-8500C Social Security Card Personalization Machine

PTA-8500C is a new member of the 8500 series, mainly used for personalized data
writing of ss card maker , Integrate highly stable contact and non-contact IC
writing mechanisms that have been widely validated in the industry for over 10
years. Equipped with a large number of contact and non-contact IC writing
stations in the industry so far, and equipped with both internal and external
card configurations

Information verification unit to achieve minimum manpower investment and stable
data writing for large capacity generate social security cards capacity output.

Specifications of PTA-8500C Social Security Card Personalization Machine
PARAMETER
Capacity 3000uph
Dimension 3850mm×910mm×1900mm
Weight 1000KG
Power Supply 220V (-5%~+10%) 50HZ 6KW
Noise ＜65dB
Operation Temperature 23℃±3℃
Operation Humidity 50±10％
Compressed Air Pressure: 0.5Mpa; Flow rate: 400L/min
Communication Interface Ethernet


Functions of PTA-8500C Social Security Card Personalization Machine
PARAMETER
Card Receiving/Dispensing Unit
1. Two removable card boxes are configured separately, with a maximum capacity
of 500 cards per box.

2. Can achieve automatic box replacement.

Visual Recognition Unit (OCR)
Before writing the data, identify the surface information of the card and
obtain the number of cards from the database Sexual data.

Contact IC Card Writing Unit
1. Can achieve data writing of standard social security cards.

2. Standard configuration includes 32 contact IC card writing stations, with a
maximum of 64 expandable configurations.

Contactless IC Card Writing Unit
1. Can write non-contact data of social security cards.

2. Standard configuration includes 16 non-contact IC card writing stations,
with a maximum of 64 expandable configurations Contactless IC card writing
unit.

Magnetic Writing Unit
1. Integrated industrial grade magnetic stripe data writer with long-term
market validation.

2. It can write card magnetic stripe data and verify its written content.

IC Calibration Unit
1.1 contact IC data verification units for verifying data written to the
contact IC.

2.1 non-contact IC data verification units for verifying data written to non-
contact ICs.

Visual Verification Unit (OCR)
After data is written, the surface information of the card is identified to
verify the accuracy of external information Accuracy.

Advantages of PTA-8500C Social Security Card Personalization Machine
WHY

High Compatibility
Equipped with a large number of contact and non-contact IC writing stations in
the industry to date, providing stable output capacity for data writing of
large capacity social security cards.

High Stability
Equipped with industrial grade contact and non-contact readers independently
developed by Peltec, with an open system architecture, fully supporting
secondary development, it can meet the high-speed and stable needs of various
smart card manufacturers.

High Speed
A complete and mature secondary development solution that can achieve rapid
integration with various production management systems, reducing customer
migration costs.

As a smart card factory, we can offer kinds of high quality products for sale,
if you are interested, please contact us.

Minimum Order: 1 sets
